Challenger

MT565B

Tractor

Operating Weight
16,634 lb
Displacement
403 in³
Power Measured @
2,200 rpm
Gross Power
170.0 hp
All tractors

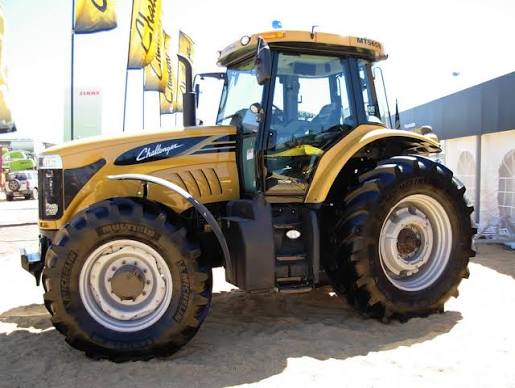

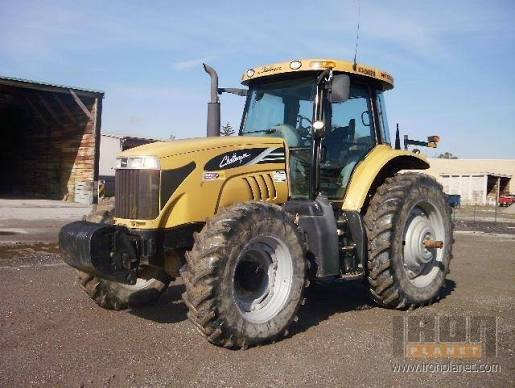

Challenger MT565B Tractor
1 / 5
Image 1 of 5
Image: heitmantractorsalvage.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,634 lb
Fuel Capacity98.0 gal
3 Point Hitch Lift Capacity @ 24 inches15,238 lb
Alternator Supplied Amperage150 A
Operating Voltage12 V
Hydraulic System Fluid Capacity18.5 gal

Engine

Engine specifications
Displacement403 in³
Power Measured @2,200 rpm
Gross Power170.0 hp
Number of Cylinders6
Engine MakeChallenger
PTO Power145.0 hp
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.0 gal/min
Number of Remote Control Valves4
Pump TypePressure flow compensated
Maximum system pressure2,900 psi

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase191 in
Overall Length81 in
Overall Width124 in

Transmission

Transmission specifications
Number of Forward Gears24
Transmission TypePartial power shift
Number of Reverse Gears24
