Claas
Ares 547
- Operating Weight
- 11,438 lb
- Displacement
- 276 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 94.7 hp
1 / 5

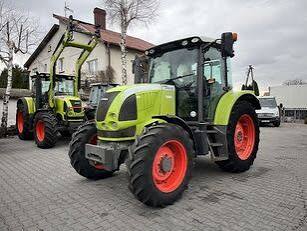

Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 11,438 lb |
|---|---|
| Fuel Capacity | 47.6 gal |
Engine
| Engine Model | ECE-R24 |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 94.7 hp |
| Net Power | 88.8 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 15.9 gal/min |
|---|---|
| Number of Remote Control Valves | 4 |
| Relief Valve Pressure | 2,901 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 114 in |
| Wheelbase | 102 in |
| Overall Length | 16 in |
| Tire Size | 1Front 3.6 R 28 Rear 16.9R38 |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Number of Forward Gears | 24 |
| Transmission Type | REVERSHIFT Powershuttle |
| Number of Reverse Gears | 24 |
