Claas
Fendt
817
Tractor
23 specifications
Claas

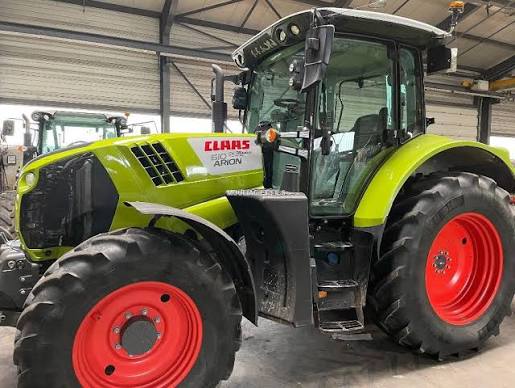

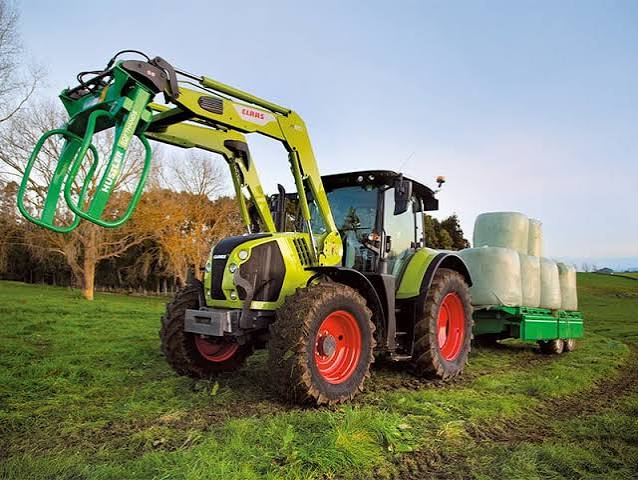

ARION 610
- Operating Weight
- 14,383 lb
- Displacement
- 414 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 123.4 hp
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 14,383 lb |
|---|---|
| Fuel Capacity | 87.2 gal |
Engine
| Engine Model | ECE R 24 |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 123.4 hp |
| Net Power | 114.0 hp |
| Number of Cylinders | 6 |
Hydraulic System
| Pump Flow Capacity | 29.1 gal/min |
|---|---|
| Number of Remote Control Valves | 6 |
| Relief Valve Pressure | 2,901 psi |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 111 in |
| Overall Length | 17 in |
| Tire Size | Front 14.9 R 28 Rear 18.4R38 |
Transmission
| Max Speed | 31.1 mph |
|---|---|
| Number of Forward Gears | 24 |
| Transmission Type | Powershift speeds 6 |
| Number of Reverse Gears | 24 |
