Claas

AXION 820

Tractor

Operating Weight
20,440 lb
Displacement
414 in³
Power Measured @
2,200 rpm
Gross Power
215.0 hp
All tractors
Claas AXION 820 Tractor
1 / 5

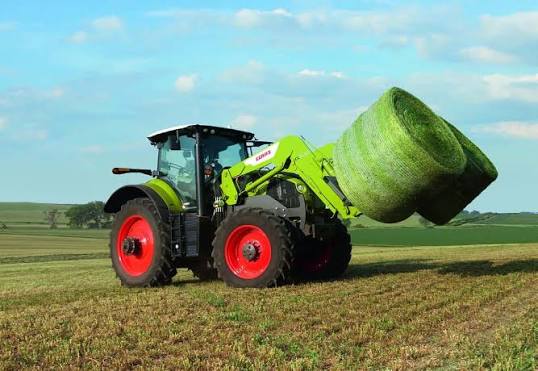

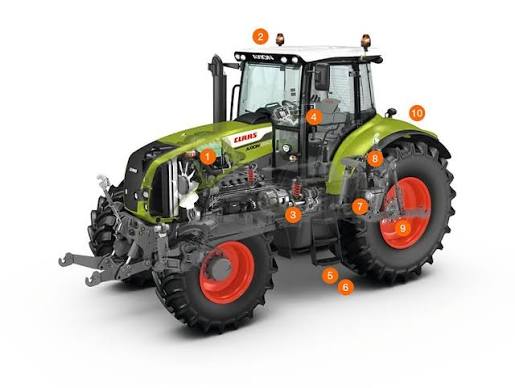

Image 1 of 5
Image: claas.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,440 lb
Fuel Capacity120.0 gal
Turning Radius203 in
Hydraulic System Fluid Capacity40.0 gal

Engine

Engine specifications
Engine ModelFPT 6.7
Displacement414 in³
Power Measured @2,200 rpm
Gross Power215.0 hp
Net Power209.0 hp
Number of Cylinders6
PTO Power20.0 hp
Engine oil service interval hours600

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Number of Remote Control Valves5
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab125 in
Wheelbase118 in
Overall Length19 in
Tire SizeFront 16.9 R 28 rear 20.8R38

Transmission

Transmission specifications
Max Speed31.1 mph
Number of Forward Gears24
Transmission TypeCMATIC
Number of Reverse Gears24

Lift System

Lift System specifications
Max front lift capacity10,120 lb
Max rear lift capacity21,450 lb
