Claas

Axion 860

Tractor

Operating Weight
22,310 lb
Displacement
409 in³
Power Measured @
2,200 rpm
Gross Power
250.0 hp
All tractors

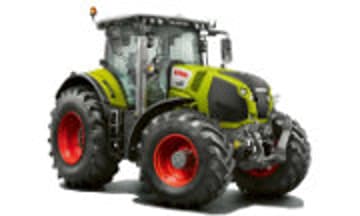

Claas Axion 860 Tractor
1 / 5
Image 1 of 5
Image: tractordata.site

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,310 lb
Fuel Capacity120.0 gal
Hydraulic System Fluid Capacity40.0 gal
DEF tank capacity11.0 gal

Engine

Engine specifications
Engine ModelFPT 6.7
Displacement409 in³
Power Measured @2,200 rpm
Gross Power250.0 hp
Net Power244.0 hp
PTO Power20.0 hp
Engine oil service interval hours600

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min

Transmission

Transmission specifications
Max Speed31.1 mph
Number of Forward Gears24
Transmission TypeCMATIC
Number of Reverse Gears24

Lift System

Lift System specifications
Max front lift capacity10,120 lb
Max rear lift capacity21,450 lb
