Claas

Lexion 570 C

Combine

Fuel Capacity
211.4 gal
Displacement
763 in³
Power
543.2 hp
All combines/harvesters

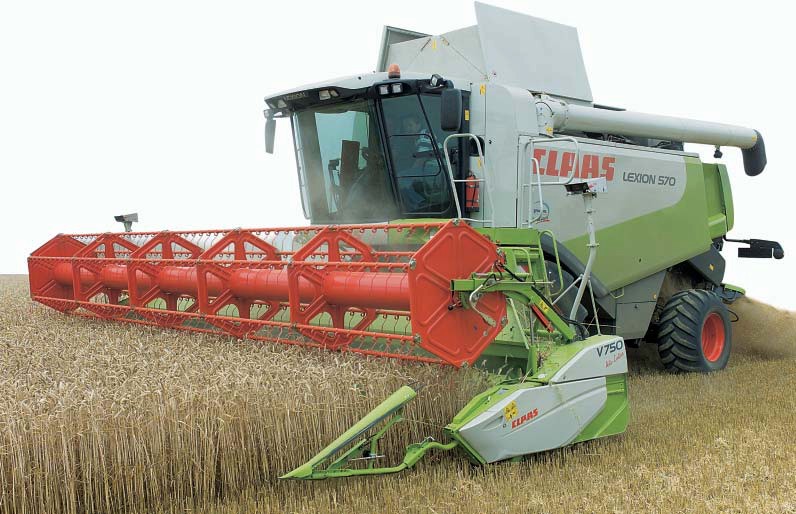

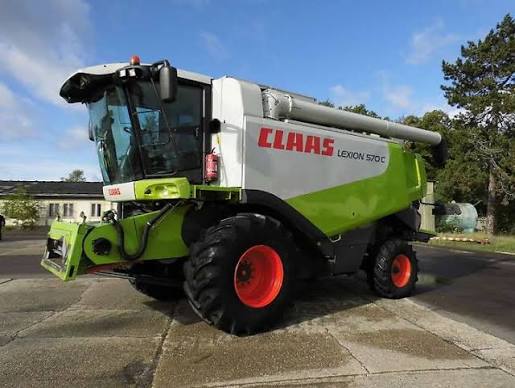

Claas Lexion 570 C Combine
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

14 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity211.4 gal

Engine

Engine specifications
Engine ModelC 13
Displacement763 in³
Power Measured @2,100 rpm
Number of Cylinders6
Power543.2 hp

Grain Handling

Grain Handling specifications
Grain Tank Capacity2,536.8 gal
Unloading Speed2.9 bu/sec

Separating

Separating specifications
Separator Length165 in

Threshing

Threshing specifications
Rotor Diameter24 in
Rotor Length56 in
Rotor Speed - High1,150 rpm
Rotor Speed - Low395 rpm
Concave Area1,643 in³
