Rostselmash
Salford

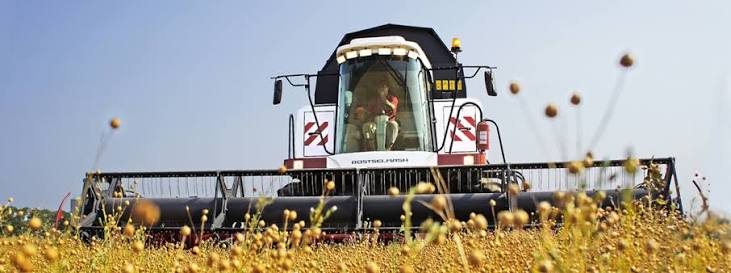

CR9070 Elevation
Combine
19 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight w/o Attachment | 29,718 lb |
|---|---|
| Fuel Capacity | 142.7 gal |
Engine
| Engine Model | QSC8.3 |
|---|---|
| Aspiration | turbocharged |
| Power | 260.2 hp |
Dimensions
| Overall Length | 650 in |
|---|---|
| Width Over Tires | 152 in |
| Height to Top of Isomount Cab | 158 in |
Cleaning System
| Total Cleaning Area | 7,347 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,050 rpm |
| Cleaning Fan Speed - Low | 335 rpm |
Feeding
| Conveyor Width | 374 in |
|---|---|
| Conveyor Speed | 49 rpm |
Grain Handling
| Grain Tank Capacity | 2,377.6 gal |
|---|---|
| Unloading Speed | 2.6 bu/sec |
| Unloading Discharge Height | 170 in |
Separating
| Separating Area | 9,533 in³ |
|---|---|
| Separator Type | 5 key straw walker |
| Separator Length | 162 in |
Threshing
| Rotor Diameter | 32 in |
|---|---|
| Rotor Length | 59 in |
| Rotor Speed - High | 1,045 rpm |
| Rotor Speed - Low | 400 rpm |
| Concave Area | 2,139 in³ |
