Massey Ferguson

9790

Combine

Operating Weight w/o Attachment
29,597 lb
Fuel Capacity
160.0 gal
Displacement
513 in³
Power
350.0 hp
All combines/harvesters

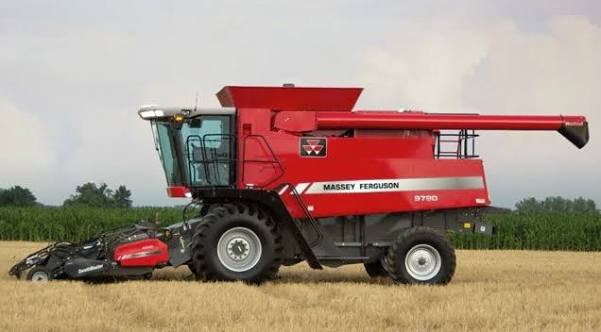

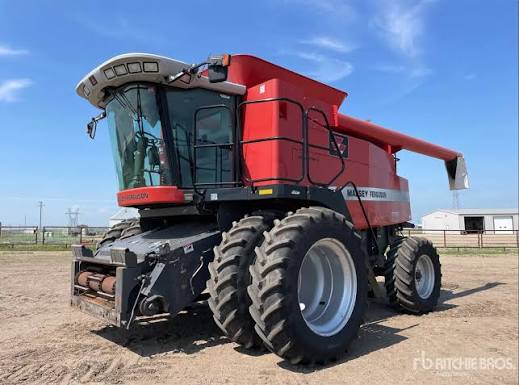

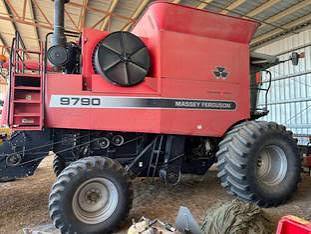

Massey Ferguson 9790 Combine
1 / 5
Image 1 of 5
Image: auctiontime.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment29,597 lb
Fuel Capacity160.0 gal
Transmission TypeHydrostatic - 4 speed

Engine

Engine specifications
Engine ModelCitius 84 CTA
Displacement513 in³
Power Measured @2,100 rpm
Number of Cylinders6
Power350.0 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase146 in
Overall Length359 in
Transport Height144 in

Cleaning System

Cleaning System specifications
Total Cleaning Area8,293 in³
Cleaning Fan Speed - High1,350 rpm
Cleaning Fan Speed - Low590 rpm

Grain Handling

Grain Handling specifications
Grain Tank Capacity2,792.8 gal
Unloading Speed2.5 bu/sec
Unloading Discharge Height173 in

Separating

Separating specifications
Separating Area2,248 in³

Threshing

Threshing specifications
Rotor Diameter28 in
Rotor Length140 in
Concave Area2,201 in³
