Gleaner
Rostselmash
ACROS 540
Combine
24 specifications

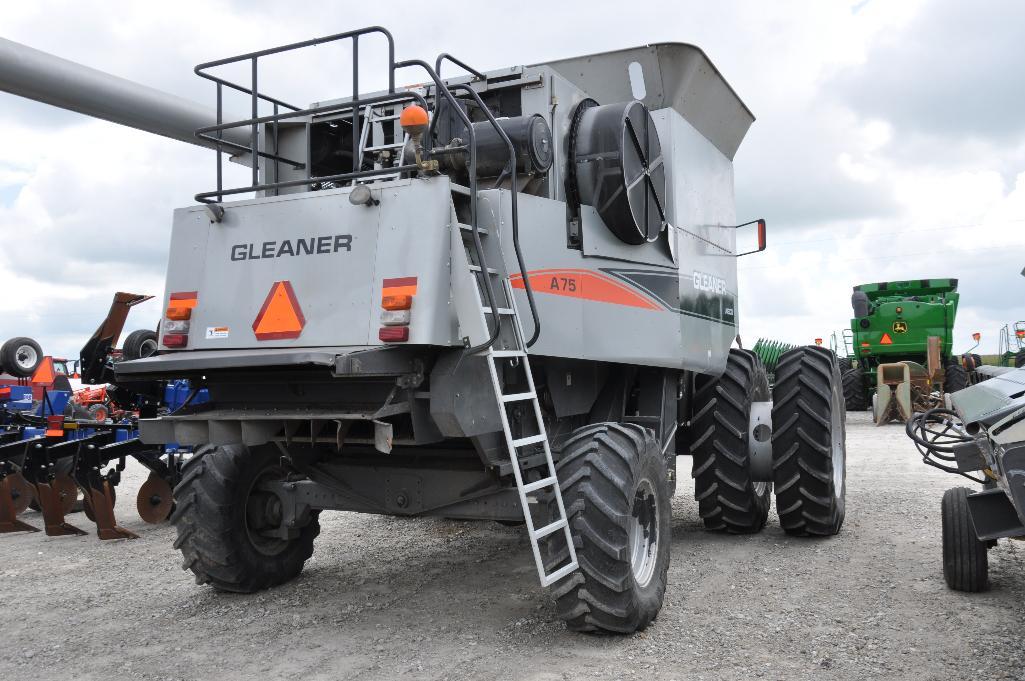

Gleaner
A75
- Operating Weight w/o Attachment
- 29,597 lb
- Fuel Capacity
- 159.9 gal
- Displacement
- 513 in³
- Power
- 350.0 hp
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight w/o Attachment | 29,597 lb |
|---|---|
| Fuel Capacity | 159.9 gal |
| Transmission Type | 4 speed hydrostatic |
Engine
| Engine Model | 84 CTA |
|---|---|
| Displacement | 513 in³ |
| Power Measured @ | 2,100 rpm |
| Power | 350.0 hp |
Dimensions
| Wheelbase | 146 in |
|---|---|
| Overall Length | 359 in |
| Height to Top of Isomount Cab | 144 in |
Cleaning System
| Total Cleaning Area | 8,293 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,350 rpm |
| Cleaning Fan Speed - Low | 590 rpm |
Feeding
| Conveyor Width | 56 in |
|---|
Grain Handling
| Grain Tank Capacity | 2,792.8 gal |
|---|---|
| Unloading Speed | 2.5 bu/sec |
| Unloading Discharge Height | 173 in |
| Unloading Auger Length | 285 in |
Separating
| Separating Area | 2,232 in³ |
|---|---|
| Separator Type | rotary |
Threshing
| Rotor Diameter | 28 in |
|---|---|
| Rotor Length | 140 in |
| Rotor Speed - High | 970 rpm |
| Rotor Speed - Low | 175 rpm |
| Concave Area | 2,201 in³ |
