Claas

Xerion 3300 Saddle Trac

Tractor

Operating Weight
22,487 lb
Displacement
537 in³
Power Measured @
2,100 rpm
Gross Power
329.9 hp
All tractors

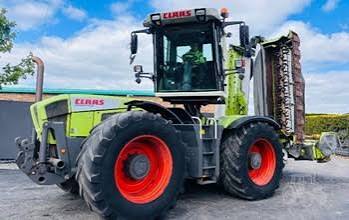

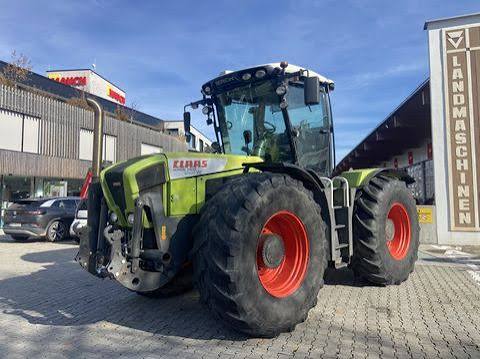

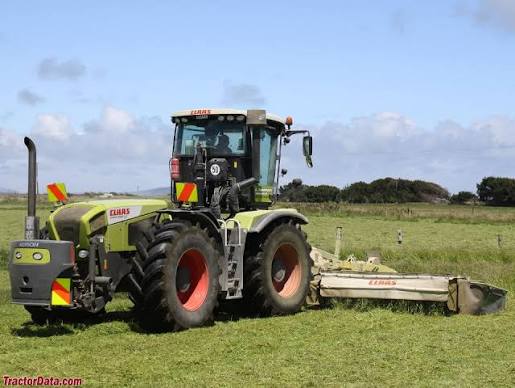

Claas Xerion 3300 Saddle Trac Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,487 lb
Fuel Capacity163.8 gal
Turning Radius236 in
Hydraulic System Fluid Capacity34.4 gal

Engine

Engine specifications
Engine ModelECE-R-24-03
Displacement537 in³
Power Measured @2,100 rpm
Gross Power329.9 hp
Net Power300.4 hp
Number of Cylinders6
AspirationTurbo charge air cooler

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity62.1 gal/min
Relief Valve Pressure3,771 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab155 in
Wheelbase131 in
Overall Length22 in
Width Outside Frame98 in

Transmission

Transmission specifications
Max Speed31.1 mph
Transmission TypeZF ECCOM 3.5
