Claas

Xerion 3800 TRAC

Tractor

Operating Weight
22,487 lb
Displacement
537 in³
Power Measured @
2,100 rpm
Gross Power
374.2 hp
All tractors

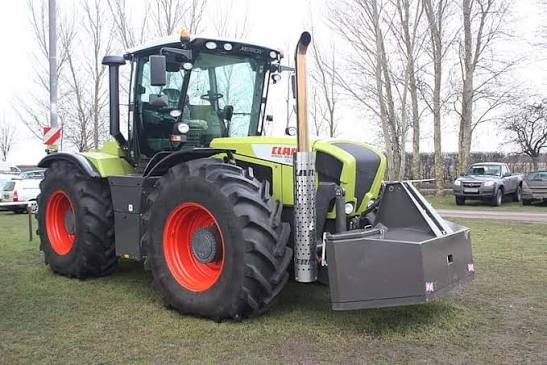

Claas Xerion 3800 TRAC Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,487 lb
Fuel Capacity163.8 gal
Turning Radius236 in
Hydraulic System Fluid Capacity34.4 gal

Engine

Engine specifications
Engine ModelECE R 24
Displacement537 in³
Power Measured @2,100 rpm
Gross Power374.2 hp
Net Power339.3 hp
Number of Cylinders6
AspirationTurbocharged and intercooled

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity62.1 gal/min
Relief Valve Pressure3,771 psi

Dimensions

Dimensions specifications
Height - Top of Cab148 in
Wheelbase131 in
Overall Length22 in
Tire Size540/80 R38 172A8 167D
Width Outside Frame100 in

Transmission

Transmission specifications
Max Speed31.1 mph
Transmission TypeZF ECCOM 3.5
