Clark

475C

Wheel Loader

Operating Weight
167,763 lb
Bucket Capacity - heaped
12.10 yd³
Gross Power
700.1 hp
Net Power
630.3 hp
All wheel loaders

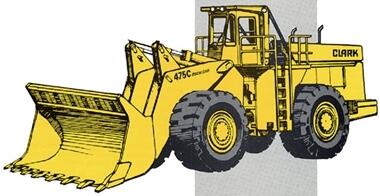

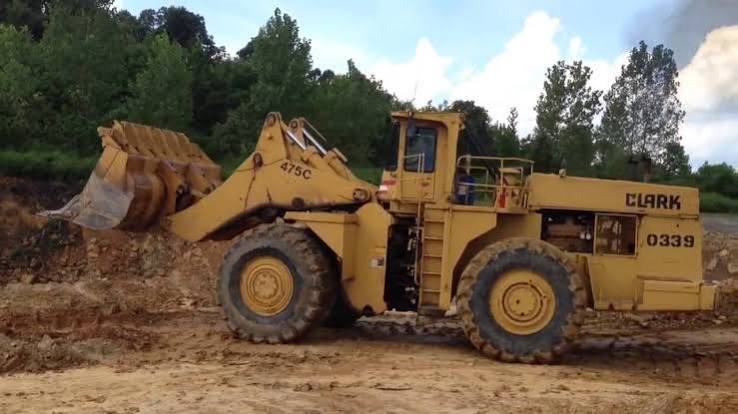

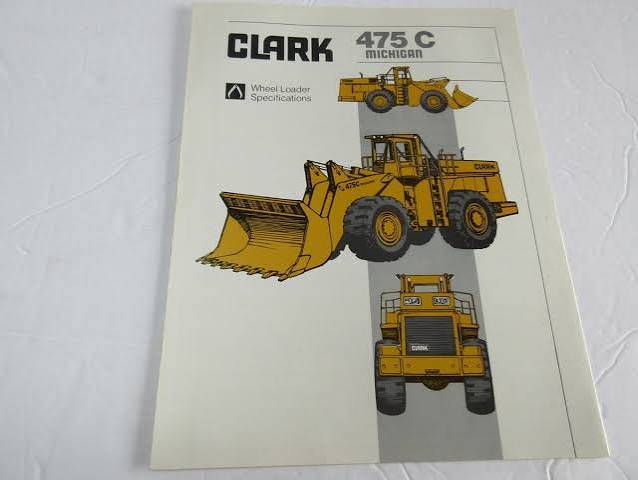

Clark 475C Wheel Loader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight167,763 lb
Fuel Capacity273.0 gal
Tire Size41.25/70-39 34PR
Hydraulic System Fluid Capacity150.0 gal
Static Tipping Weight101,550 lb
Operating Voltage24 V
Turning Radius411 in
Engine Oil Fluid Capacity27.0 gal
Rear Axle Oscillation20 °
Alternator Supplied Amperage100 A
Front Axle/Diff Fluid Capacity29.1 gal
Rear Axle/Diff Fluid Capacity29.1 gal
Cooling System Fluid Capacity60.0 gal
Transmission Fluid Capacity33.0 gal

Engine

Engine specifications
Engine ModelVTA-1710C
Displacement1,709 in³
Power Measured @2,000 rpm
Gross Power700.1 hp
Net Power630.3 hp
Number of Cylinders12
Torque Measured @1,500 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity230.9 gal/min
Raise Time12.0 s
Lower Time6.3 s
Dump Time3.7 s
Relief Valve Setting2,700 psi
Pump Typethree gear type

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab193 in
Wheelbase182 in
Width Over Tires163 in
Reach at Max Lift and Dump72 in
Length with Bucket on Ground491 in
Hinge Pin - Max Height247 in

Transmission

Transmission specifications
Max Speed - Forward18.6 mph
Max Speed - Reverse18.6 mph
Transmission TypeClark countershaft powershift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped12.10 yd³
Bucket Capacity - struck9.90 yd³
Dump Clearance at Max Raise186 in
Breakout Force95,634 lb
Bucket Width176 in
