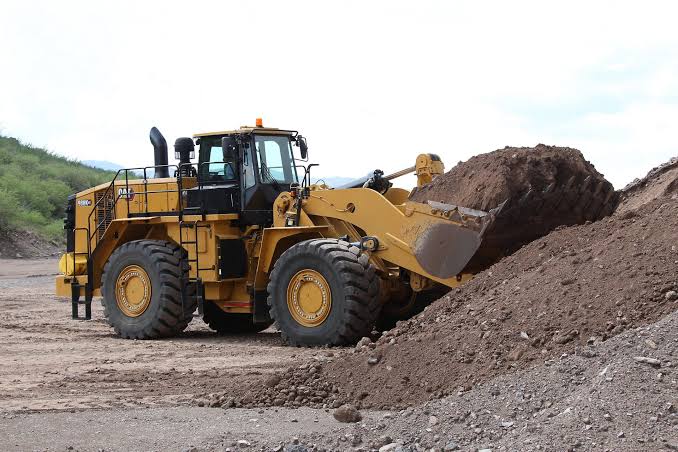

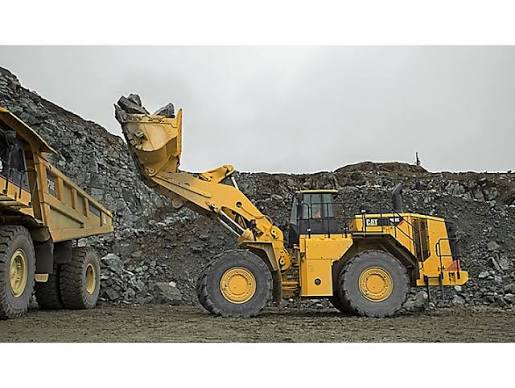

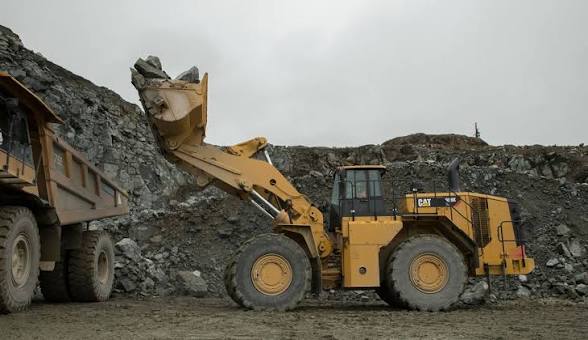

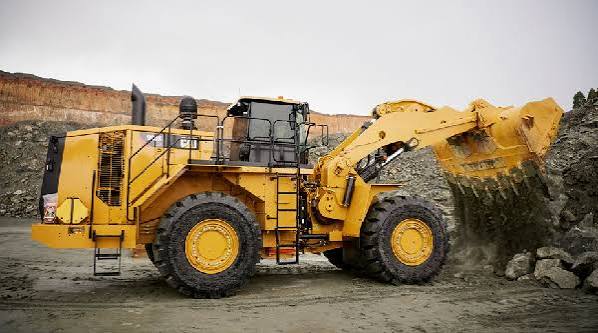

Caterpillar
Michigan
L320
Wheel Loader
45 specifications
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 116,362 lb |
|---|---|
| Bucket Capacity Range | 6.2 - 17 yd |
Engine
| Engine Model | Cat C18 ACERT |
|---|---|
| Displacement | 1,105 in³ |
| Net Power | 541.0 hp |
| Bore | 6 in |
| Stroke | 7 in |
| Torque Rise | 58.0 % |
| Net Power - SAE J1349 | 541.0 hp |
| Rated Speed | 1,700 rpm |
| Emissions | U.S. EPA Tier 4 Final/EU Stage IV |
| Gross Power - ISO 14396 | 580.0 hp |
| Peak Power Speed - 1,500 rpm - Net Power - SAE J1349 | 541.0 hp |
| Peak Power Speed - 1,500 rpm - Gross - SAE J1995 | 588.0 hp |
| Peak Power Speed - 1,500 rpm - Gross - ISO 14396 | 580.0 hp |
Transmission
| Transmission Type | Cat switched reluctance electric drive |
|---|
Brakes & Steering
| Brakes | ISO 3450:2011 |
|---|
Bucket
| Bucket Capacities | 17.00 yd³ |
|---|
General Specifications
| Net Power | 538.00 hp (401.19 kw) Starting 2023 Model Year |
|---|---|
| Operating Weight | 116,362.00 lbs (52,780.98 kg) Starting 2023 Model Year |
| Bucket Capacity | 6.2 - 17 (4.7 - 13) Starting 2024 Model Year |
| Engine type | Cat C18 Starting 2024 Model Year |
| Engine Power | 541 (403) Starting 2019 Model Year |
| Max Dump Height | 11.3 (3.4) Starting 2019 Model Year |
| Travel Speed(Fwd/Rev) | 21.6 / 14.4 mph Starting 2021 Model Year |
| Tip Load | 86,941 39,436) Starting 2024 Model Year |
| Engine | C18 Starting 2023 Model Year |
| Breakout Force | 98,421.00 lbs ft (133,439.20 nm) Starting 2023 Model Year |
| Full-Turn Tipping Load | 79,435.00 lbs (36,031.15 kg) Starting 2023 Model Year |
| Travel Speed | 21.6 / 14.4 mph Starting 2024 Model Year |
| Full-Turn Tip Load | 79,435.00 lbs (36,031.15 kg) Starting 2021 Model Year |
Service Refill Capacities
| Transmission | 16.0 gal |
|---|---|
| Fuel Tank | 147.0 gal |
| Differential - Final Drives - Front | 49.0 gal |
| Differential - Final Drives - Rear | 49.0 gal |
| Engine Crankcase | 16.0 gal |
| Diesel Exhaust Fluid Tank | 8.7 gal |
Axles
| Front | Fixed |
|---|---|
| Rear | Trunnion |
| Oscillation Angle | 13 ° |
Hydraulic Cycle Times
| Raise | 8.0 s |
|---|---|
| Dump | 2.2 s |
| Total Hydraulic Cycle Time | 18.2 s |
| Rack Back | 4.5 s |
| Lower Float Down | 3.5 s |
Hydraulic System - Lift/Tilt
| Lift Cylinder - Bore | 9 in |
|---|---|
| Lift Cylinder - Stroke | 41 in |
| Lift/Tilt System - Circuit | EH-Positive Flow Control Flow Sharing |
| Relief Valve Setting - Lift/Tilt | 4,757 psi |
| Lift/Tilt System - Pump | Variable displacement piston |
| Tilt Cylinder - Bore | 9 in |
| Tilt Cylinder - Stroke | 27 in |
Hydraulic System - Steering
| Steering System - Circuit | Pilot load sensing |
|---|---|
| Steering System - Pump | Piston variable displacement |
| Steering Cycle Times - High Idle | 3.4 s |
| Steering Cycle Times - Low Idle | 5.6 s |
| Steering Cut Off Pressure | 4,351 psi |
