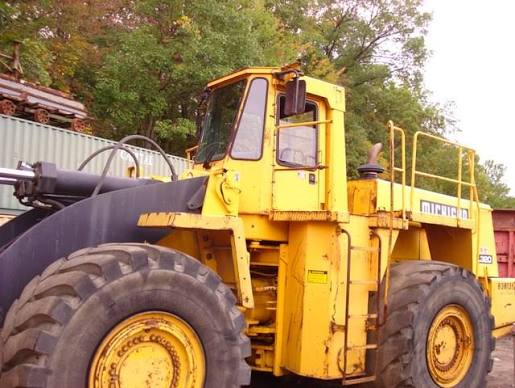

Michigan
L320
- Operating Weight
- 99,220 lb
- Bucket Capacity - heaped
- 8.00 yd³
- Gross Power
- 452.0 hp
- Net Power
- 417.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 99,220 lb |
|---|---|
| Fuel Capacity | 212.2 gal |
| Tire Size | 35/65-33 (30PR) L-4 |
| Hydraulic System Fluid Capacity | 160.1 gal |
| Static Tipping Weight | 67,812 lb |
| Operating Voltage | 24 V |
| Turning Radius | 355 in |
| Engine Oil Fluid Capacity | 13.5 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 100 A |
| Front Axle/Diff Fluid Capacity | 18.0 gal |
| Rear Axle/Diff Fluid Capacity | 18.0 gal |
| Cooling System Fluid Capacity | 35.1 gal |
| Transmission Fluid Capacity | 18.0 gal |
Engine
| Engine Model | KTA 19C |
|---|---|
| Displacement | 1,150 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 452.0 hp |
| Net Power | 417.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbo + aftercooled |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 194.0 gal/min |
|---|---|
| Raise Time | 9.0 s |
| Lower Time | 5.4 s |
| Dump Time | 2.1 s |
| Relief Valve Setting | 2,900 psi |
| Pump Type | three gear type |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 166 in |
| Wheelbase | 161 in |
| Width Over Tires | 144 in |
| Reach at Max Lift and Dump | 67 in |
| Length with Bucket on Ground | 411 in |
| Hinge Pin - Max Height | 199 in |
Transmission
| Max Speed - Forward | 22.1 mph |
|---|---|
| Max Speed - Reverse | 13.0 mph |
| Transmission Type | Clark 6421-11 countershaft type powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 8.00 yd³ |
|---|---|
| Bucket Capacity - struck | 6.70 yd³ |
| Dump Clearance at Max Raise | 150 in |
| Breakout Force | 101,600 lb |
| Bucket Width | 156 in |
