Kawasaki

115ZIII

Wheel Loader

Operating Weight
92,197 lb
Bucket Capacity - heaped
8.31 yd³
Net Power
410.0 hp
All wheel loaders

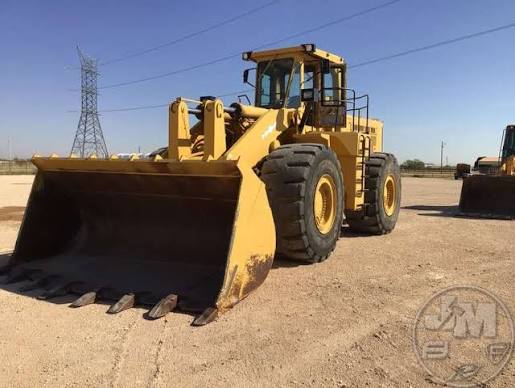

Kawasaki 115ZIII Wheel Loader
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight92,197 lb
Fuel Capacity163.8 gal
Tire Size35/65-33-24PR (L-4)
Hydraulic System Fluid Capacity118.9 gal
Static Tipping Weight136,819 lb
Operating Voltage24 V
Turning Radius325 in
Engine Oil Fluid Capacity15.6 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage75 A
Front Axle/Diff Fluid Capacity47.6 gal
Rear Axle/Diff Fluid Capacity47.6 gal
Cooling System Fluid Capacity23.8 gal
Transmission Fluid Capacity21.2 gal

Engine

Engine specifications
Engine ModelKT19-C
Displacement1,150 in³
Power Measured @2,000 rpm
Net Power410.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,300 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity54.2 gal/min
Raise Time8.7 s
Lower Time4.4 s
Dump Time2.1 s
Relief Valve Setting3,000 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab162 in
Wheelbase159 in
Width Over Tires142 in
Reach at Max Lift and Dump70 in
Length with Bucket on Ground415 in
Hinge Pin - Max Height199 in

Transmission

Transmission specifications
Max Speed - Forward19.3 mph
Max Speed - Reverse13.5 mph
Transmission Typefull power shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped8.31 yd³
Bucket Capacity - struck7.00 yd³
Dump Clearance at Max Raise143 in
Breakout Force75,840 lb
Bucket Width149 in
