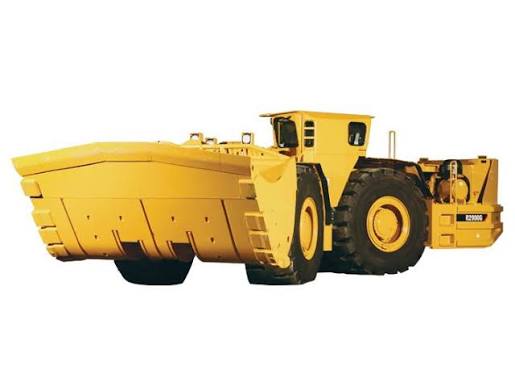

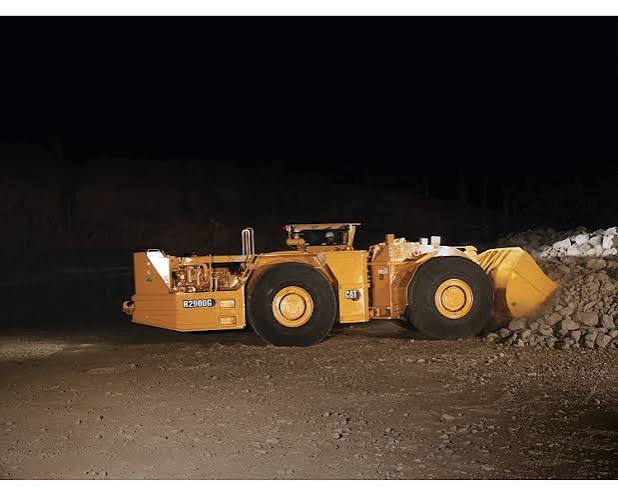

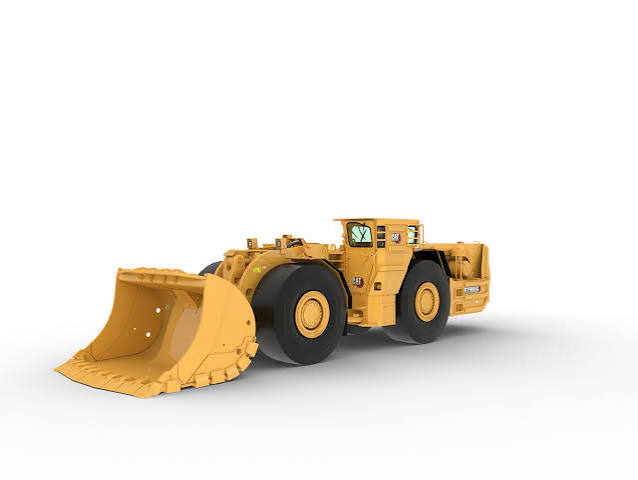

Caterpillar
R2900G XTRA
- Operating Weight
- 123,459 lb
- Bucket Capacity - heaped
- 11.69 yd³
- Gross Power
- 410.0 hp
- Net Power
- 378.0 hp
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 123,459 lb |
|---|---|
| Fuel Capacity | 225.6 gal |
| Tire Size | 36/65R33 VSDL Radials |
| Hydraulic System Fluid Capacity | 37.0 gal |
| Static Tipping Weight | 100,940 lb |
| Turning Radius | 3,548 in |
| Engine Oil Fluid Capacity | 9.0 gal |
| Front Axle/Diff Fluid Capacity | 31.4 gal |
| Rear Axle/Diff Fluid Capacity | 33.5 gal |
| Cooling System Fluid Capacity | 19.8 gal |
| Transmission Fluid Capacity | 16.4 gal |
Engine
| Engine Model | 3406E EUI ATAAC |
|---|---|
| Displacement | 894 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 410.0 hp |
| Net Power | 378.0 hp |
Hydraulic System
| Raise Time | 7.6 s |
|---|---|
| Lower Time | 2.4 s |
| Dump Time | 2.8 s |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 150 in |
| Width Over Tires | 137 in |
| Length with Bucket on Ground | 437 in |
| Hinge Pin - Max Height | 179 in |
Transmission
| Max Speed - Forward | 15.0 mph |
|---|---|
| Max Speed - Reverse | 16.8 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 11.69 yd³ |
|---|---|
| Dump Clearance at Max Raise | 246 in |
| Breakout Force | 55,340 lb |
| Bucket Width | 137 in |
