Clark

55C

Wheel Loader

Operating Weight
23,709 lb
Bucket Capacity - heaped
2.00 yd³
Gross Power
123.4 hp
Net Power
115.4 hp
All wheel loaders

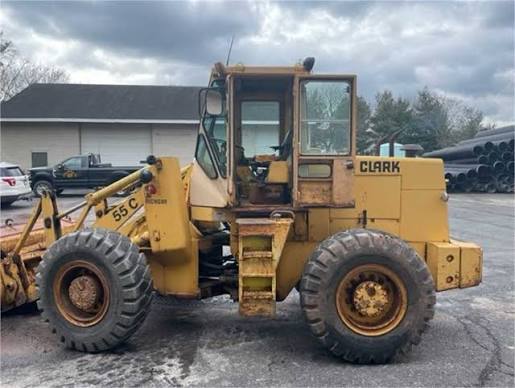

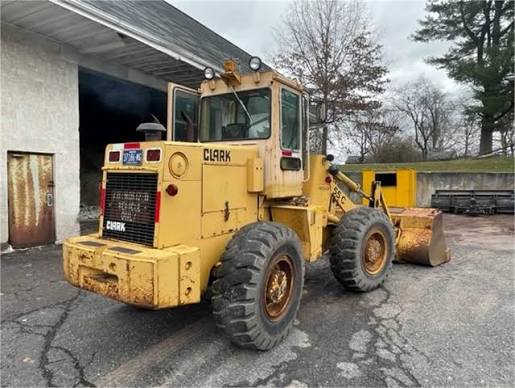

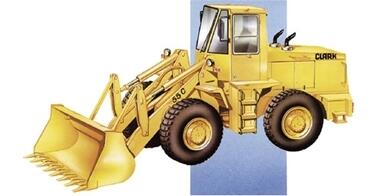

Clark 55C Wheel Loader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,709 lb
Fuel Capacity39.9 gal
Tire Size17.5-25
Hydraulic System Fluid Capacity31.8 gal
Static Tipping Weight171 lb
Operating Voltage12 V
Turning Radius230 in
Engine Oil Fluid Capacity3.7 gal
Rear Axle Oscillation18 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity3.0 gal
Rear Axle/Diff Fluid Capacity3.0 gal
Cooling System Fluid Capacity9.6 gal
Transmission Fluid Capacity5.0 gal

Engine

Engine specifications
Engine ModelV-378C
Displacement378 in³
Gross Power123.4 hp
Net Power115.4 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity41.6 gal/min
Raise Time6.5 s
Lower Time3.5 s
Dump Time2.0 s
Relief Valve Setting2,400 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab121 in
Wheelbase108 in
Width Over Tires89 in
Reach at Max Lift and Dump37 in
Length with Bucket on Ground263 in
Hinge Pin - Max Height144 in

Transmission

Transmission specifications
Max Speed - Forward17.3 mph
Max Speed - Reverse17.3 mph
Transmission TypeClark countershaft powershift
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.00 yd³
Bucket Capacity - struck1.80 yd³
Dump Clearance at Max Raise111 in
Bucket Width100 in
