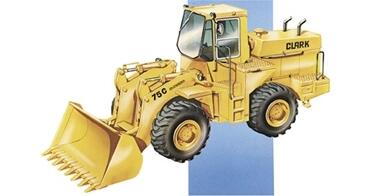

Clark
75C
- Operating Weight
- 31,482 lb
- Bucket Capacity - heaped
- 2.50 yd³
- Gross Power
- 152.9 hp
- Net Power
- 154.3 hp
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 31,482 lb |
|---|---|
| Fuel Capacity | 70.1 gal |
| Tire Size | 20.5-25 12PR (L-3) |
| Hydraulic System Fluid Capacity | 50.1 gal |
| Static Tipping Weight | 27,201 lb |
| Operating Voltage | 24 V |
| Turning Radius | 240 in |
| Engine Oil Fluid Capacity | 7.1 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 3.1 gal |
| Rear Axle/Diff Fluid Capacity | 3.1 gal |
| Cooling System Fluid Capacity | 13.0 gal |
| Transmission Fluid Capacity | 8.1 gal |
Engine
| Engine Model | V-504C |
|---|---|
| Displacement | 504 in³ |
| Gross Power | 152.9 hp |
| Net Power | 154.3 hp |
Hydraulic System
| Pump Flow Capacity | 50.0 gal/min |
|---|---|
| Raise Time | 6.7 s |
| Lower Time | 3.5 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 2,500 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 113 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 31 in |
| Length with Bucket on Ground | 275 in |
| Hinge Pin - Max Height | 148 in |
Transmission
| Max Speed - Forward | 20.0 mph |
|---|---|
| Max Speed - Reverse | 20.0 mph |
| Transmission Type | Clark countershaft powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.50 yd³ |
|---|---|
| Bucket Capacity - struck | 2.11 yd³ |
| Dump Clearance at Max Raise | 111 in |
| Bucket Width | 104 in |
