John Deere

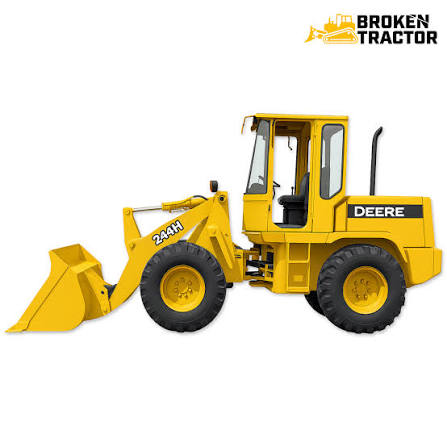

244H
Wheel Loader
45 specifications
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 18,938 lb |
|---|---|
| Fuel Capacity | 32.5 gal |
| Tire Size | 17.5x25 (L-2) |
| Hydraulic System Fluid Capacity | 18.8 gal |
| Static Tipping Weight | 14,608 lb |
| Turning Radius | 216 in |
Engine
| Engine Model | 3204 |
|---|---|
| Displacement | 317 in³ |
| Gross Power | 84.5 hp |
Hydraulic System
| Raise Time | 6.3 s |
|---|---|
| Lower Time | 3.1 s |
| Dump Time | 1.3 s |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 107 in |
| Width Over Tires | 93 in |
| Reach at Max Lift and Dump | 37 in |
| Length with Bucket on Ground | 251 in |
| Hinge Pin - Max Height | 138 in |
Transmission
| Max Speed - Forward | 15.5 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.00 yd³ |
|---|---|
| Bucket Capacity - struck | 1.80 yd³ |
| Dump Clearance at Max Raise | 104 in |
| Breakout Force | 18,838 lb |
| Bucket Width | 95 in |

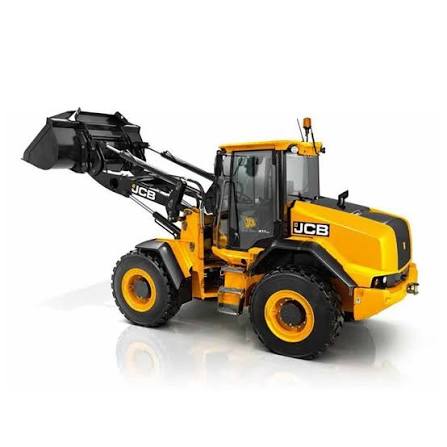

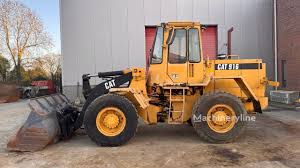

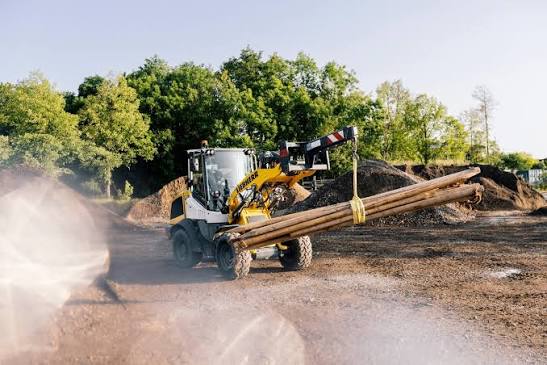

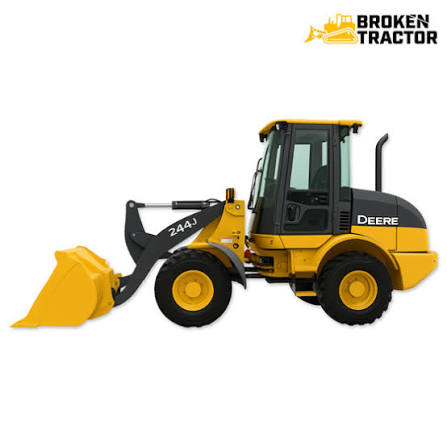

Comparable machines
