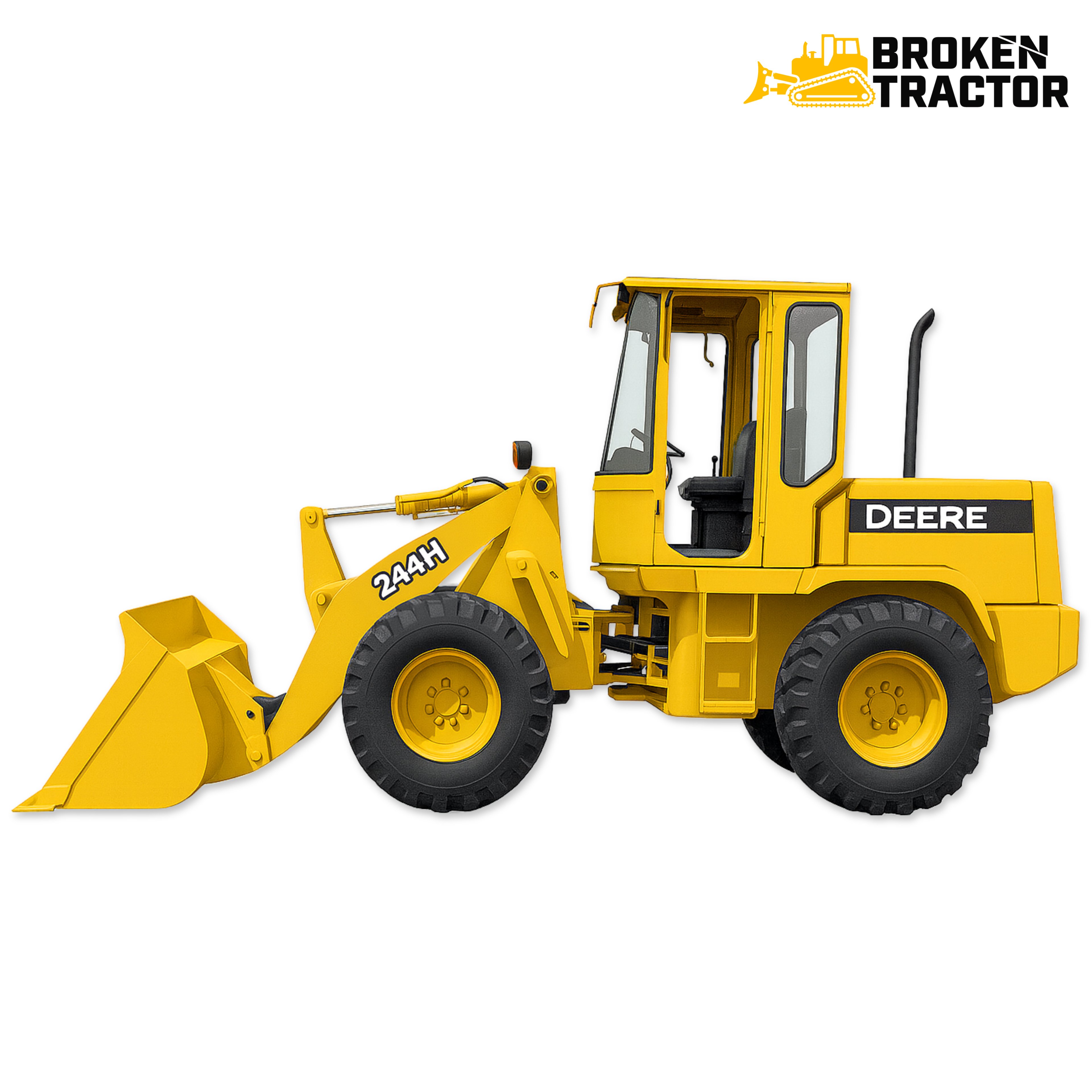

John Deere
244H
- Operating Weight
- 11,370 lb
- Bucket Capacity - heaped
- 0.99 yd³
- Gross Power
- 58.0 hp
- Net Power
- 55.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 11,370 lb |
|---|---|
| Fuel Capacity | 18.5 gal |
| Tire Size | 17.5/65-20 |
| Hydraulic System Fluid Capacity | 19.3 gal |
| Static Tipping Weight | 7,474 lb |
| Operating Voltage | 24 V |
| Turning Radius | 150 in |
| Engine Oil Fluid Capacity | 3.1 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 35 A |
| Front Axle/Diff Fluid Capacity | 2.6 gal |
| Rear Axle/Diff Fluid Capacity | 2.6 gal |
| Cooling System Fluid Capacity | 2.9 gal |
| Transmission Fluid Capacity | 2.7 gal |
Engine
| Engine Model | 4TNE98 |
|---|---|
| Displacement | 202 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 58.0 hp |
| Net Power | 55.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 21.2 gal/min |
|---|---|
| Raise Time | 4.3 s |
| Lower Time | 3.8 s |
| Dump Time | 0.8 s |
| Relief Valve Setting | 2,990 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 88 in |
| Width Over Tires | 77 in |
| Reach at Max Lift and Dump | 33 in |
| Length with Bucket on Ground | 196 in |
| Hinge Pin - Max Height | 125 in |
Transmission
| Max Speed - Forward | 20.1 mph |
|---|---|
| Max Speed - Reverse | 20.1 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Bucket Capacity - struck | 0.90 yd³ |
| Dump Clearance at Max Raise | 101 in |
| Breakout Force | 10,143 lb |
| Bucket Width | 79 in |
