John Deere

244J

Wheel Loader

Bucket Capacity - heaped
0.99 yd³
Gross Power
64.0 hp
All wheel loaders

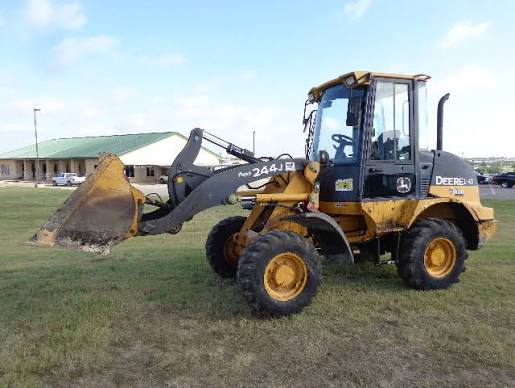

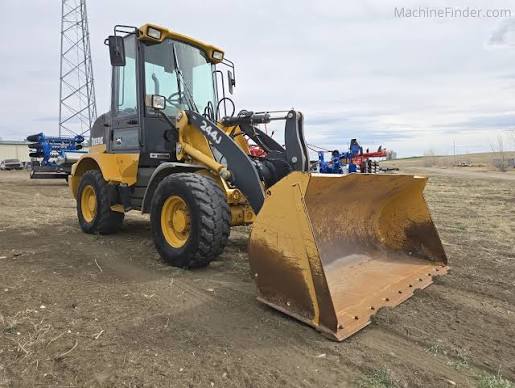

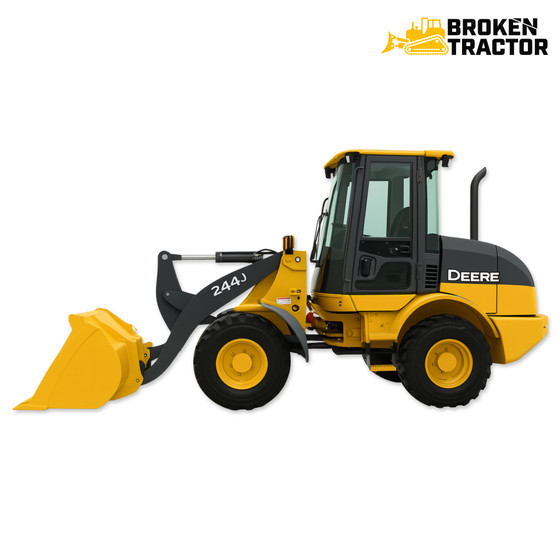

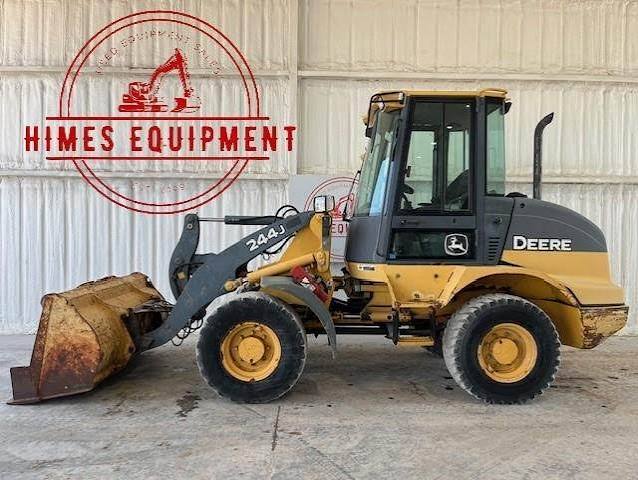

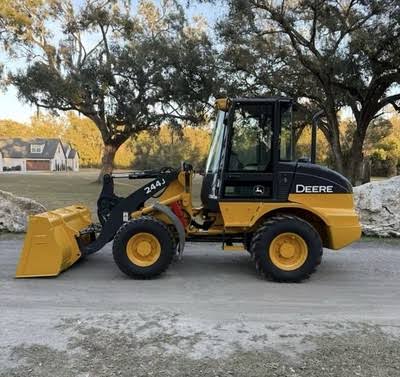

John Deere 244J Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Tire Size365/70R18
Static Tipping Weight8,457 lb
Operating Voltage12 V
Turning Radius138 in
Engine Oil Fluid Capacity9.0 gal
Rear Axle Oscillation20 °
Alternator Supplied Amperage65 A
Front Axle/Diff Fluid Capacity4.2 gal
Rear Axle/Diff Fluid Capacity4.3 gal
Rated Bucket Capacity0.99 yd³
Engine Oil Capacity2.3 gal
Static Tipping Load - Bucket8,457 lb
Front Diff Fluid Capacity1.1 gal
Rear Diff Fluid Capacity1.1 gal
Static Tipping Load - Forks6,405 lb

Engine

Engine specifications
Power Measured @2,600 rpm
Gross Power64.0 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,600 rpm
Max Torque163 lb-ft
MakeJohn Deere
Torque Rise47.3 %

Weights

Weights specifications
Operating Weight11,552 lb

Hydraulic System

Hydraulic System specifications
Raise Time4.9 s
Lower Time4.0 s
Dump Time1.4 s
Relief Valve Setting3,190 psi

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab108 in
Reach at Max Lift and Dump32 in
Length with Bucket on Ground209 in
Hinge Pin - Max Height126 in
Reach at Max Height and Dump47 in
Dump Clearance at Max Lift101 in
Length w/ Bucket on Ground209 in
Max Lift Height120 in
Fork Tine Length48 in
Length with out Forks on Ground229 in

Transmission

Transmission specifications
Max Speed - Forward18.6 mph
Max Speed - Reverse18.6 mph
Transmission Typehydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped0.99 yd³
Bucket Capacity - struck0.90 yd³
Dump Clearance at Max Raise101 in
Breakout Force10,792 lb
Bucket Width898 in
