JCB

411 ZX Direct

Wheel Loader

Bucket Capacity - heaped
1.60 yd³
All wheel loaders

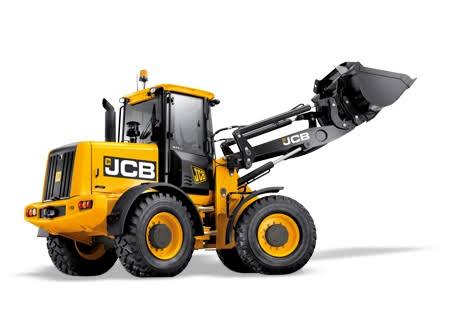

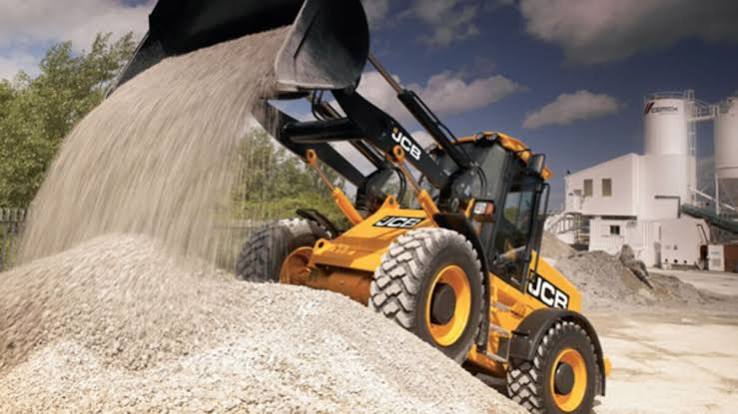

JCB 411 ZX Direct Wheel Loader
1 / 5
Image 1 of 5
Image: williamsjcb.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity29.1 gal
Tire Size405/80 R25
Hydraulic System Fluid Capacity34.4 gal
Static Tipping Weight11,464 lb
Operating Voltage12 V
Turning Radius180 in
Engine Oil Fluid Capacity2.9 gal
Alternator Supplied Amperage65 A
Front Axle/Diff Fluid Capacity4.3 gal
Rear Axle/Diff Fluid Capacity4.8 gal
Cooling System Fluid Capacity4.8 gal
Transmission Fluid Capacity34.4 gal
Engine Oil Capacity2.9 gal
Static Tipping Load - Bucket11,905 lb
Front Diff Fluid Capacity4.3 gal
Rear Diff Fluid Capacity4.8 gal

Engine

Engine specifications
Power Measured @2,000 rpm
Number of Cylinders4
Torque Measured @1,400 rpm
Max Torque223 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.8 gal/min
Raise Time4.9 s
Lower Time3.1 s
Dump Time0.9 s
Relief Valve Setting3,553 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab114 in
Wheelbase89 in
Width Over Tires89 in
Reach at Max Lift and Dump29 in
Length with Bucket on Ground219 in
Hinge Pin - Max Height130 in
Length w/ Bucket on Ground219 in
Reach at Max Height and Dump29 in
Dump Clearance at Max Lift110 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph
Max Speed - Reverse12.5 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.60 yd³
Bucket Capacity - struck1.40 yd³
Dump Clearance at Max Raise110 in
Breakout Force17,310 lb
Bucket Width89 in
