Cukurova
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

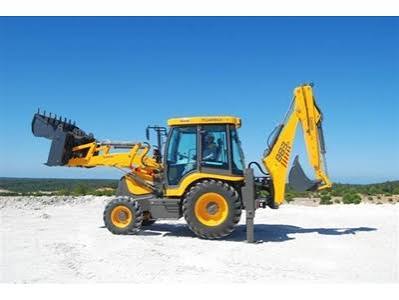

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight 4wd | 17,858 lb |
|---|---|
| Fuel Capacity | 26.5 gal |
| Hydraulic System Fluid Capacity | 37.0 gal |
| Cooling System Fluid Capacity | 6.7 gal |
| Tire Size Front - 2wd / 4wd | 12.5 / 80-18 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 75 A |
| Turning Radius | 217 in |
| Rear Axle Fluid Capacity | 4.3 gal |
| Front Axle Fluid Capacity | 2.1 gal |
Engine
| Engine Model | 1104C-44T |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 100.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Net Max Torque | 304 lb-ft |
Hydraulic System
| Pump Flow Capacity | 40.7 gal/min |
|---|---|
| Relief Valve Pressure | 3,191 psi |
| Pump Type | Tandem gear |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Wheelbase | 86 in |
| Transport Width | 90 in |
| Transport Length | 228 in |
| Height to Top of Suspended Cab | 113 in |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Max Speed - Reverse | 18.7 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Transmission Type | ZF Powershift |
Tires & Wheels
| Rear Tires Size | 16.9 - 28 |
|---|
Backhoe
| Dig Depth | 181 in |
|---|---|
| Reach From Swivel | 226 in |
| Dig Depth - Extended | 229 in |
| Load Height - Extended | 186 in |
| Reach From Swivel - Extended | 269 in |
| Reach at Load Height - Extended | 104 in |
Loader
| Bucket Capacity | 1.50 yd³ |
|---|---|
| Clearance at Max Dump Height | 108 in |
| Bucket Breakout Force | 11,596 lb |
| Bucket Width | 90 in |
| Reach at Max Dump Height | 25 in |
| Dig Depth | 5 in |
