Daewoo

MEGA 250 V

Wheel Loader

Operating Weight
30,865 lb
Bucket Capacity - heaped
3.20 yd³
Gross Power
162.3 hp
Net Power
152.9 hp
All wheel loaders

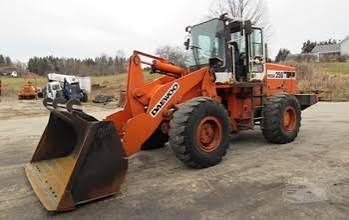

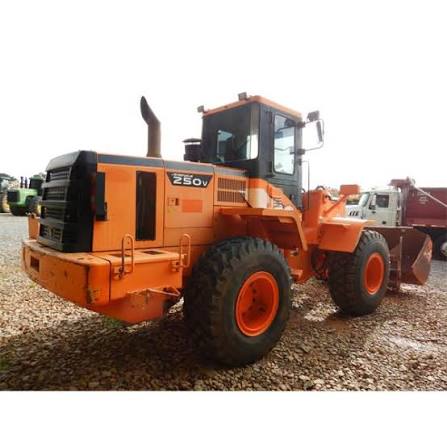

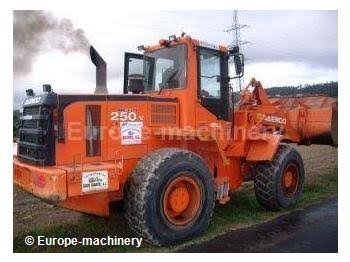

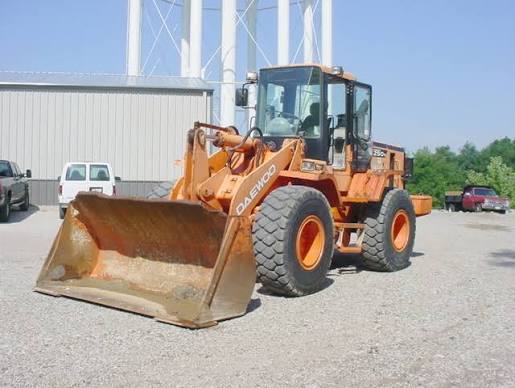

Daewoo MEGA 250 V Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,865 lb
Fuel Capacity71.4 gal
Tire Size20.5-25-16PR
Hydraulic System Fluid Capacity51.6 gal
Static Tipping Weight26,456 lb
Operating Voltage24 V
Turning Radius239 in
Engine Oil Fluid Capacity5.6 gal
Rear Axle Oscillation22 °
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity8.2 gal
Rear Axle/Diff Fluid Capacity6.4 gal
Cooling System Fluid Capacity13.3 gal
Transmission Fluid Capacity7.2 gal

Engine

Engine specifications
Engine ModelD1146T
Displacement353 in³
Power Measured @2,200 rpm
Gross Power162.3 hp
Net Power152.9 hp
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity66.1 gal/min
Raise Time5.3 s
Lower Time3.3 s
Dump Time1.2 s
Relief Valve Setting2,901 psi
Pump Typetandem vane pumps

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab131 in
Wheelbase120 in
Width Over Tires102 in
Reach at Max Lift and Dump47 in
Length with Bucket on Ground296 in
Hinge Pin - Max Height154 in

Transmission

Transmission specifications
Max Speed - Forward23.0 mph
Max Speed - Reverse15.3 mph
Transmission Typefull power shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.20 yd³
Dump Clearance at Max Raise109 in
Breakout Force29,101 lb
Bucket Width108 in
