Daewoo

S015P

Mini Excavator

Operating Weight
3,461 lb
Max Digging Depth
85 in
Net Power
16.8 hp
All mini excavators

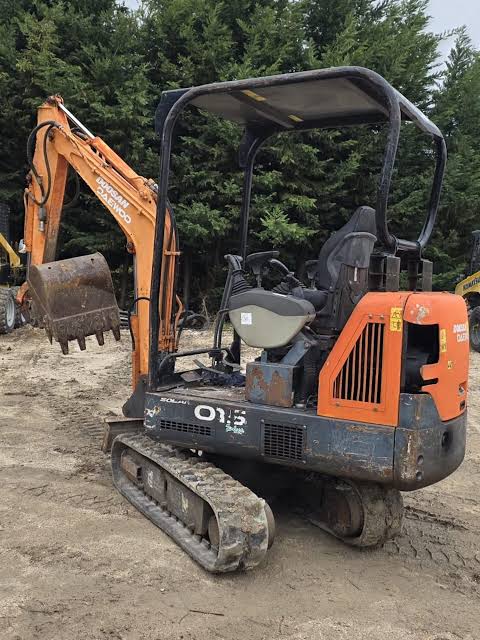

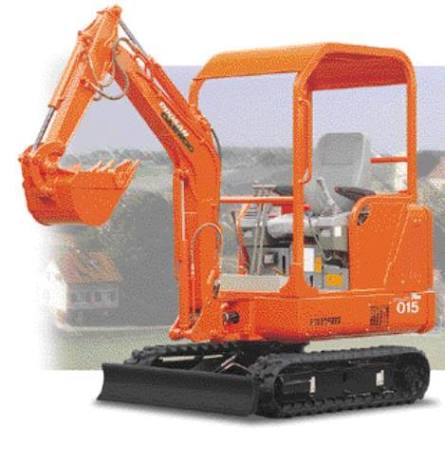

Daewoo S015P Mini Excavator
1 / 5
Image 1 of 5
Image: tvh.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,461 lb
Fuel Capacity5.1 gal
Hydraulic System Fluid Capacity6.9 gal

Engine

Engine specifications
Engine ModelL3E
Displacement58 in³
Power Measured @2,300 rpm
Net Power16.8 hp

Dimensions

Dimensions specifications
Height - Top of Cab89 in
Length of Track on Ground49 in
Tail Swing Radius48 in
Width to Outside of Tracks40 in
Removal Counterweight Clearance17 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.4 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth85 in
Max Loading Height89 in
Shipping Length of Unit149 in
Max Cutting Height134 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
