Doosan

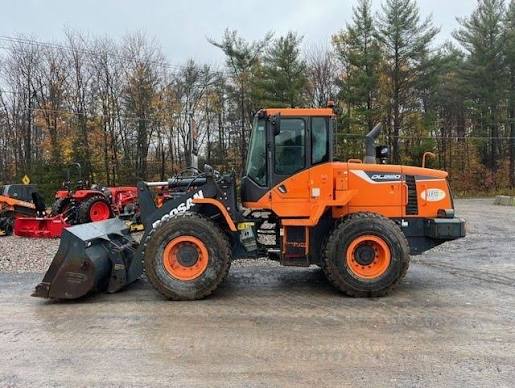

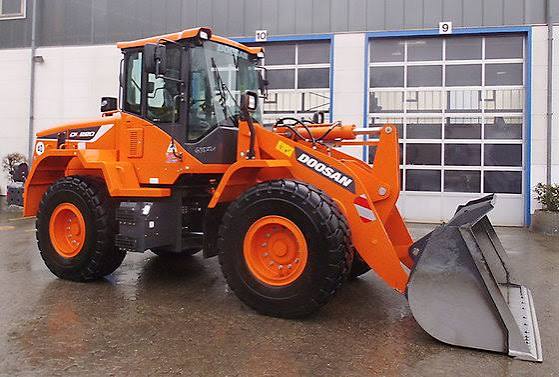

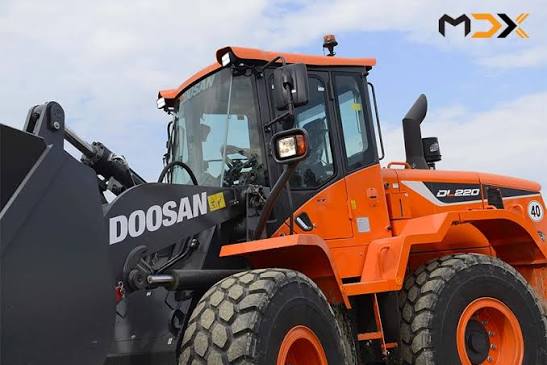

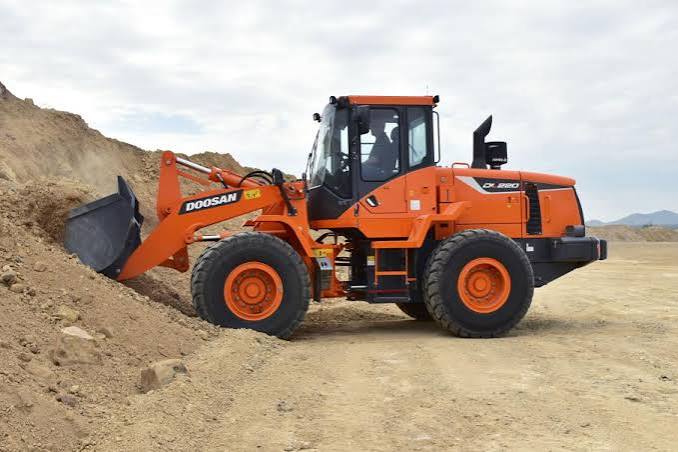

DL220-5
- Operating Weight
- 27,381 lb
- Bucket Capacity - heaped
- 3.10 yd³
- Gross Power
- 160.0 hp
- Net Power
- 160.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 27,381 lb |
|---|---|
| Fuel Capacity | 58.7 gal |
| Tire Size | 20.5-R25 (L3) |
| Hydraulic System Fluid Capacity | 31.8 gal |
| Static Tipping Weight | 21,231 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 7.2 gal |
| Front Axle/Diff Fluid Capacity | 5.7 gal |
| Rear Axle/Diff Fluid Capacity | 5.7 gal |
| Cooling System Fluid Capacity | 10.6 gal |
| Transmission Fluid Capacity | 8.0 gal |
| Rated Bucket Capacity | 3.00 yd³ |
| DEF tank capacity | 8.4 gal |
Engine
| Engine Model | DL06 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 160.0 hp |
| Net Power | 160.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | Doosan |
| Make | Doosan |
| Bore | 4 in |
| Stroke | 5 in |
| Alternator | 80 A |
| Max. torque ISO14396 | 542 lb-ft |
Weights
| Operating Weight | 27,381 lb |
|---|
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 119 in |
| Width Over Tires | 97 in |
| Hinge Pin - Max Height | 152 in |
| Tread Width | 76 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.10 yd³ |
|---|---|
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 2,315,307 lb |
| Bucket Width | 101 in |
General Specifications
| Operating Weight | 27,381 (12,419) — Starting 2019 Model Year |
|---|---|
| Operating Weight lbs (kg) | 27,381 (12,419) — Starting 2016 Model Year |
| Bucket Capacity | 3.0 (2.3) — Starting 2019 Model Year |
| Bucket Capacity cu. yd. (cu m) | 3.0 (2.3) — Starting 2016 Model Year |
| Engine type | Doosan — Starting 2019 Model Year |
| Engine Power | 160 (119) — Starting 2019 Model Year |
| Max Dump Height | 9.3 (2.8) — Starting 2021 Model Year |
| Max Dump Height ft.( m) | 9.3 (2.85) — Starting 2016 Model Year |
| Engine Power HP (KW) | 160 (119) — Starting 2016 Model Year |
