Doosan

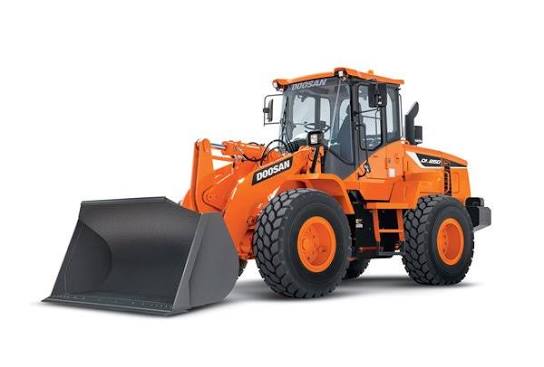

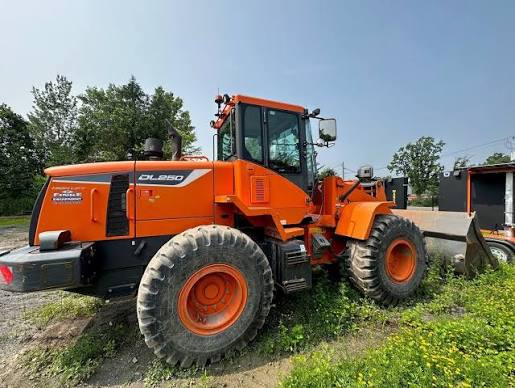

DL250
- Operating Weight
- 30,865 lb
- Bucket Capacity - heaped
- 3.30 yd³
- Gross Power
- 162.0 hp
- Net Power
- 153.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 30,865 lb |
|---|---|
| Fuel Capacity | 67.4 gal |
| Tire Size | 20.5R25 |
| Hydraulic System Fluid Capacity | 41.8 gal |
| Static Tipping Weight | 26,896 lb |
| Operating Voltage | 24 V |
| Turning Radius | 216 in |
| Engine Oil Fluid Capacity | 7.2 gal |
| Rear Axle Oscillation | 22 ° |
| Front Axle/Diff Fluid Capacity | 8.2 gal |
| Rear Axle/Diff Fluid Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 11.9 gal |
| Transmission Fluid Capacity | 11.9 gal |
Engine
| Engine Model | DL06 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 162.0 hp |
| Net Power | 153.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbo compressor and air-air cooling |
| Torque Measured @ | 1,800 rpm |
Hydraulic System
| Pump Flow Capacity | 33.3 gal/min |
|---|---|
| Raise Time | 5.4 s |
| Lower Time | 3.3 s |
| Dump Time | 1.3 s |
| Relief Valve Setting | 2,843 psi |
| Pump Type | triple section vane pump |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 120 in |
| Width Over Tires | 103 in |
| Reach at Max Lift and Dump | 48 in |
| Length with Bucket on Ground | 304 in |
| Hinge Pin - Max Height | 152 in |
Transmission
| Max Speed - Forward | 21.2 mph |
|---|---|
| Max Speed - Reverse | 14.7 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.30 yd³ |
|---|---|
| Dump Clearance at Max Raise | 107 in |
| Breakout Force | 29,101 lb |
| Bucket Width | 108 in |
