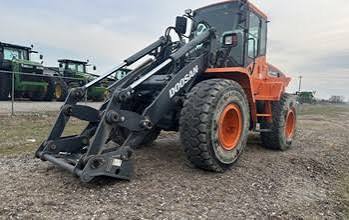

TWL3036
Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 31,085 lb |
|---|---|
| Fuel Capacity | 67.4 gal |
| Tire Size | 20.5R25 |
| Hydraulic System Fluid Capacity | 41.8 gal |
| Operating Voltage | 24 V |
| Turning Radius | 216 in |
| Rear Axle Oscillation | 11 ° |
| Cooling System Fluid Capacity | 11.9 gal |
| Transmission Fluid Capacity | 11.9 gal |
| Engine Oil Capacity | 7.2 gal |
| Static Tipping Load - Bucket | 21,623 lb |
| Front Diff Fluid Capacity | 8.2 gal |
| Rear Diff Fluid Capacity | 6.4 gal |
| Static Tipping Load - Forks | 19,996 lb |
Engine
| Engine Model | DL06 |
|---|---|
| Displacement | 360 in³ |
| Gross Power | 162.0 hp |
| Net Power | 153.0 hp |
| Aspiration | turbo compressor and air-air cooling |
| Max Torque | 593 lb-ft |
Hydraulic System
| Raise Time | 5.4 s |
|---|---|
| Lower Time | 3.3 s |
| Dump Time | 1.3 s |
| Relief Valve Setting | 2,843 psi |
| Pump Type | triple section vane pump |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 120 in |
| Width Over Tires | 103 in |
| Length w/ Bucket on Ground | 316 in |
| Dump Clearance at Max Lift | 107 in |
| Reach at Max Height and Dump | 53 in |
| Max Lift Height | 148 in |
| Length with out Forks on Ground | 332 in |
Transmission
| Max Speed - Forward | 21.2 mph |
|---|---|
| Max Speed - Reverse | 14.7 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - struck | 3.30 yd³ |
|---|---|
| Breakout Force | 28,660 lb |
