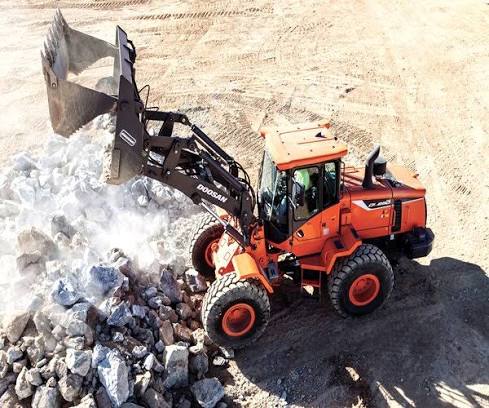

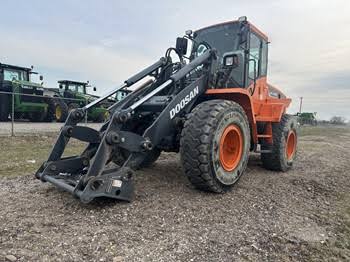

Doosan
DL250TC-5
- Operating Weight
- 31,592 lb
- Bucket Capacity - heaped
- 3.30 yd³
- Gross Power
- 172.0 hp
- Net Power
- 172.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 31,592 lb |
|---|---|
| Fuel Capacity | 58.7 gal |
| Tire Size | 20.5-R25 (L3) |
| Hydraulic System Fluid Capacity | 31.8 gal |
| Static Tipping Weight | 20,470 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 7.2 gal |
| Front Axle/Diff Fluid Capacity | 9.3 gal |
| Rear Axle/Diff Fluid Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 10.6 gal |
| Transmission Fluid Capacity | 8.0 gal |
| Rated Bucket Capacity | 3.40 yd³ |
| DEF tank capacity | 8.4 gal |
Engine
| Engine Model | DL06 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 172.0 hp |
| Net Power | 172.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | Doosan |
| Make | Doosan |
| Bore | 4 in |
| Stroke | 5 in |
| Alternator | 80 A |
| Air cleaner | Double Element |
| Battery | 100 AH |
| Starter | 8.0 hp |
| Max. torque ISO14396 | 593 lb-ft |
Weights
| Operating Weight | 31,115 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 41.0 gal/min |
|---|
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 120 in |
| Width Over Tires | 104 in |
| Hinge Pin - Max Height | 145 in |
| Tread Width | 80 in |
Transmission
| Max Speed - Forward | 23.5 mph |
|---|---|
| Max Speed - Reverse | 15.1 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.30 yd³ |
|---|---|
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 22,930 lb |
| Bucket Width | 108 in |
General Specifications
| Operating Weight | 31,592 (14,330) — Starting 2019 Model Year |
|---|---|
| Operating Weight lbs (kg) | 31,115 (14,113) — Starting 2016 Model Year |
| Bucket Capacity | 3.3 (2.5) — Starting 2019 Model Year |
| Bucket Capacity cu. yd. (cu m) | 3.4 (2.6) — Starting 2016 Model Year |
| Engine type | Doosan — Starting 2019 Model Year |
| Engine Power | 172 (128) — Starting 2019 Model Year |
| Max Dump Height | 9.0 (2.7) — Starting 2021 Model Year |
| Max Dump Height ft.( m) | 9.0 (2.74) — Starting 2016 Model Year |
| Engine Power HP (KW) | 172 (128) — Starting 2016 Model Year |
