Doosan

DL280-5

Wheel Loader

Operating Weight
34,262 lb
Bucket Capacity - heaped
3.70 yd³
Gross Power
172.0 hp
Net Power
172.0 hp
All wheel loaders

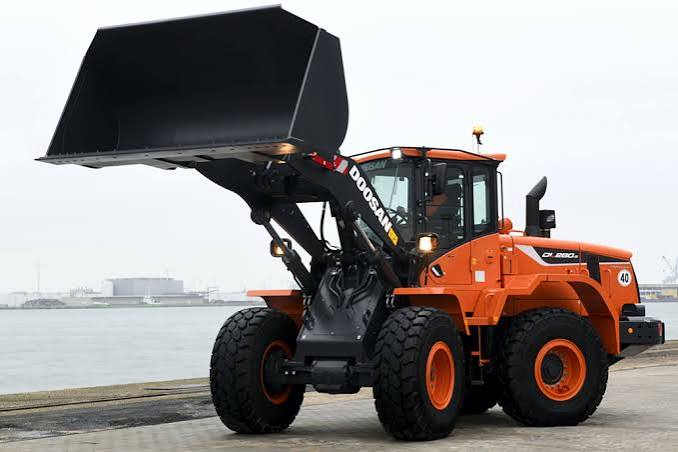

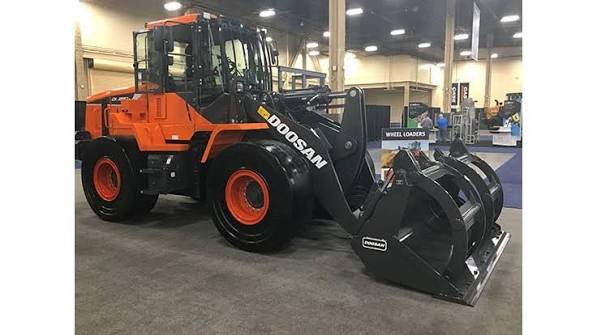

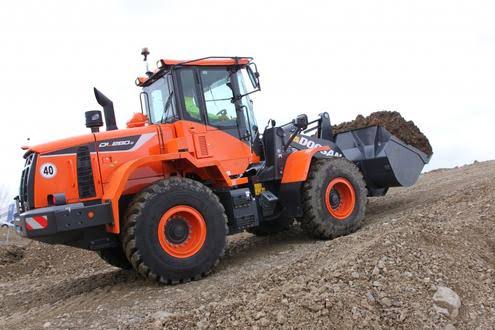

Doosan DL280-5 Wheel Loader
1 / 5
Image 1 of 5
Image: recyclingproductnews.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,262 lb
Fuel Capacity58.7 gal
Tire Size20.5-R25 (L3)
Hydraulic System Fluid Capacity31.8 gal
Static Tipping Weight26,486 lb
Operating Voltage24 V
Engine Oil Fluid Capacity7.2 gal
Front Axle/Diff Fluid Capacity9.3 gal
Rear Axle/Diff Fluid Capacity6.1 gal
Cooling System Fluid Capacity8.4 gal
Transmission Fluid Capacity9.8 gal
Rated Bucket Capacity3.70 yd³
DEF tank capacity8.4 gal

Engine

Engine specifications
Engine ModelDL06
Displacement360 in³
Power Measured @2,100 rpm
Gross Power172.0 hp
Net Power172.0 hp
Number of Cylinders6
Torque Measured @1,400 rpm
Engine MakeDoosan
MakeDoosan
Bore4 in
Stroke5 in
Alternator80 A
Air cleanerDouble Element
Battery100 AH
Starter8.0 hp
Max. torque ISO14396593 lb-ft

Weights

Weights specifications
Operating Weight34,262 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity55.5 gal/min

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase119 in
Width Over Tires102 in
Hinge Pin - Max Height156 in
Tread Width80 in

Transmission

Transmission specifications
Max Speed - Forward22.1 mph
Max Speed - Reverse15.1 mph
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.70 yd³
Dump Clearance at Max Raise110 in
Breakout Force30,349 lb
Bucket Width108 in

General Specifications

General Specifications specifications
Operating Weight34,262 (15,541) — Starting 2019 Model Year
Bucket Capacity3.7 (2.8) — Starting 2019 Model Year
Engine typeDoosan — Starting 2019 Model Year
Engine Power172 (128) — Starting 2019 Model Year
Max Dump Height9.2 (2.8) — Starting 2019 Model Year
