Doosan

DX300LC

Excavator

Operating Weight
64,594 lb
Max Digging Depth
267 in
Max Digging Depth
291 in
Net Power
197.0 hp
All excavators

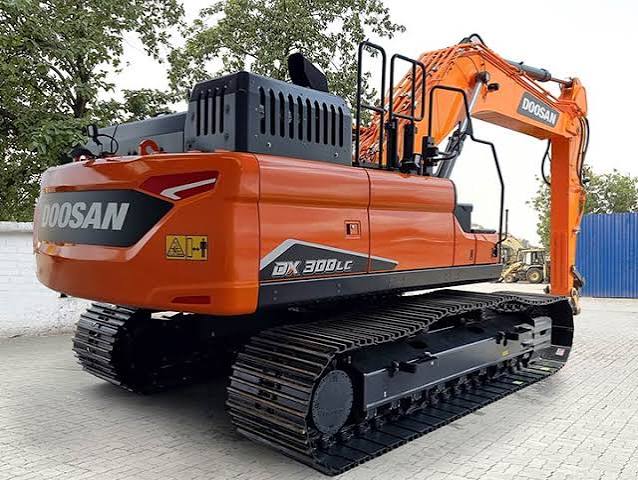

Doosan DX300LC Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Operating Weight64,594 lb
Fuel Capacity132.1 gal
Hydraulic Pump Flow Capacity130.6 gal/min
Hydraulic System Fluid Capacity87.2 gal
Hydraulic System Relief Valve Pressure4,699 psi
Engine Oil Capacity9.6 gal
Cooling System Fluid Capacity9.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelDL08
Displacement466 in³
Power Measured @1,900 rpm
Net Power197.0 hp
Aspirationturbocharged with air to air intercooler
Torque Measured @1,300 rpm
Max Torque672 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab121 in
Length of Track on Ground158 in
Tail Swing Radius126 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance47 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Number of Track Rollers per Side9
Max Travel Speed3.2 mph
Shoe Size24 in
Number of Shoes per Side48
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth267 in
Max Reach Along Ground393 in
Max Loading Height274 in
Max Vertical Wall Digging Depth214 in
Max Cutting Height394 in
Shipping Length of Unit424 in
Shipping Height of Unit138 in

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
Maximum Bucket Capacity2.30 yd³
Minimum Bucket Capacity0.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth291 in
Max Vertical Wall Digging Depth245 in
Max Cutting Height407 in
Max Loading Height287 in
Max Reach Along Ground417 in
Shipping Length of Unit419 in
Shipping Height of Unit132 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth316 in
Max Cutting Height410 in
Max Loading Height291 in
Max Vertical Wall Digging Depth263 in
Max Reach Along Ground437 in
Shipping Length of Unit420 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth547 in
Max Cutting Height558 in
Max Reach Along Ground686 in
Max Loading Height470 in
Max Vertical Wall Dig Depth458 in
Shipping Length of Unit567 in
