Doosan

DX85R-3

Mini Excavator

Operating Weight
18,960 lb
Max Digging Depth
187 in
Gross Power
59.4 hp
Net Power
58.6 hp
All mini excavators

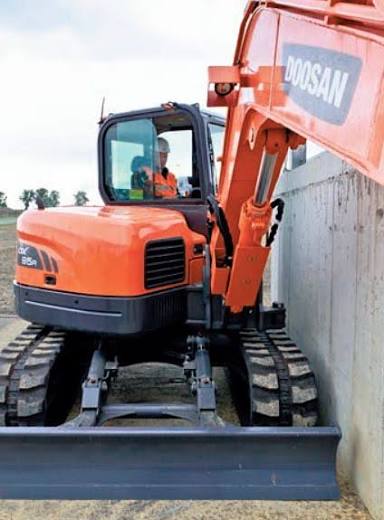

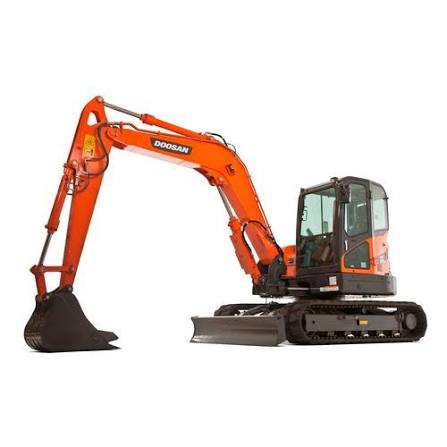

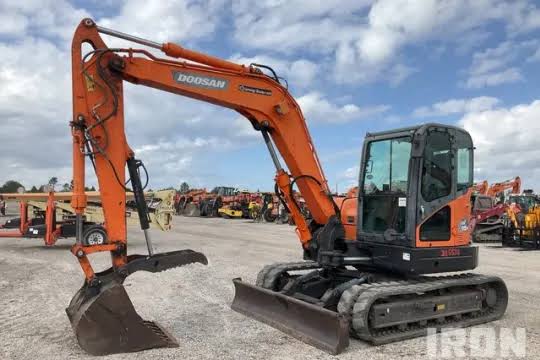

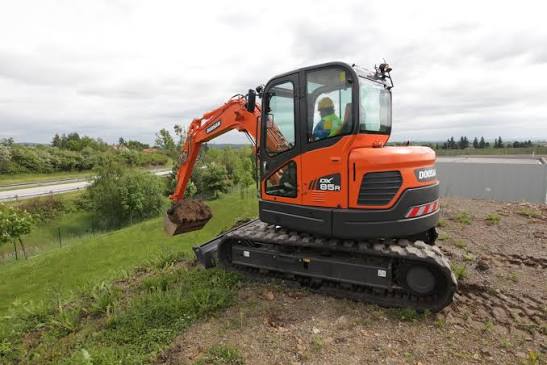

Doosan DX85R-3 Mini Excavator
1 / 5
Image 1 of 5
Image: supplypost.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,960 lb
Fuel Capacity29.1 gal
Hydraulic System Fluid Capacity39.1 gal
Engine Oil Capacity2.7 gal
Cooling System Fluid Capacity2.7 gal

Engine

Engine specifications
Engine Model4TNV98C
Displacement203 in³
Power Measured @2,100 rpm
Gross Power59.4 hp
Net Power58.6 hp
Number of Cylinders4
Torque Measured @1,365 rpm
Max Torque178 lb-ft
Engine MakeYanmar
Stroke4 in
Bore4 in

Dimensions

Dimensions specifications
Height - Top of Cab37 in
Tail Swing Radius52 in

Undercarriage

Undercarriage specifications
Track Gauge73 in
Shoe Size18 in
Number of Shoes per Side39
Drawbar Pull14,551 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth187 in
Max Reach Along Ground278 in
Max Vertical Wall Digging Depth149 in
Max Loading Height198 in
Shipping Length of Unit248 in
Shipping Height of Unit86 in
Max Digging Height267 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
Swing Torque14,104 lb-ft
