Doosan
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
Doosan
M250-V
- Operating Weight
- 30,424 lb
- Bucket Capacity - heaped
- 3.20 yd³
- Gross Power
- 170.0 hp
- Net Power
- 163.0 hp
.jpg)
1 / 5

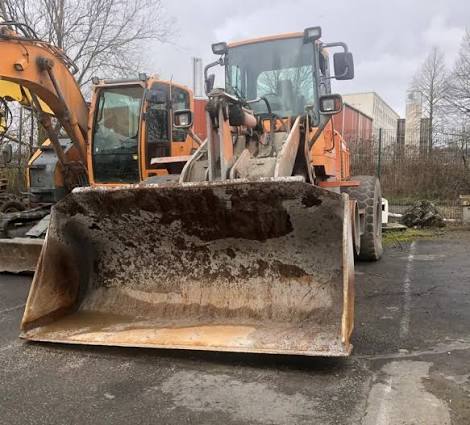

Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 30,424 lb |
|---|---|
| Fuel Capacity | 71.4 gal |
| Tire Size | 20.5/25 |
| Static Tipping Weight | 26,456 lb |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 A |
Engine
| Displacement | 353 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 170.0 hp |
| Net Power | 163.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 31.8 gal/min |
|---|---|
| Raise Time | 5.3 s |
| Lower Time | 3.3 s |
| Dump Time | 1.2 s |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 120 in |
| Width Over Tires | 102 in |
| Reach at Max Lift and Dump | 109 in |
| Length with Bucket on Ground | 296 in |
Transmission
| Max Speed - Forward | 23.0 mph |
|---|---|
| Max Speed - Reverse | 15.3 mph |
| Transmission Type | ZF |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 154 in |
| Breakout Force | 29,090 lb |
