Doosan
New Holland
W110B

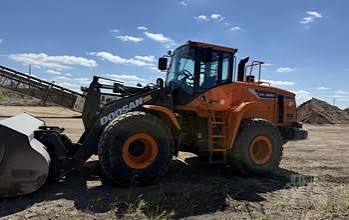

Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 18,960 lb |
|---|---|
| Fuel Capacity | 48.9 gal |
| Tire Size | 17.5-25 |
| Hydraulic System Fluid Capacity | 26.5 gal |
| Operating Voltage | 24 V |
| Turning Radius | 192 in |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 50 A |
| Cooling System Fluid Capacity | 7.7 gal |
| Transmission Fluid Capacity | 5.3 gal |
| Engine Oil Capacity | 3.5 gal |
| Static Tipping Load - Bucket | 13,440 lb |
| Front Diff Fluid Capacity | 4.8 gal |
| Rear Diff Fluid Capacity | 4.8 gal |
Engine
| Engine Model | DB58 |
|---|---|
| Displacement | 353 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 110.0 hp |
| Net Power | 104.0 hp |
| Number of Cylinders | 6 |
| Aspiration | naturally aspired |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 268 lb-ft |
Hydraulic System
| Raise Time | 6.0 s |
|---|---|
| Lower Time | 3.1 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 2,845 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 107 in |
| Width Over Tires | 91 in |
| Dump Clearance at Max Lift | 111 in |
| Length w/ Bucket on Ground | 254 in |
| Reach at Max Height and Dump | 36 in |
Transmission
| Max Speed - Forward | 21.5 mph |
|---|---|
| Max Speed - Reverse | 14.0 mph |
| Transmission Type | auto powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - struck | 2.11 yd³ |
|---|---|
| Breakout Force | 20,720 lb |
