Doosan

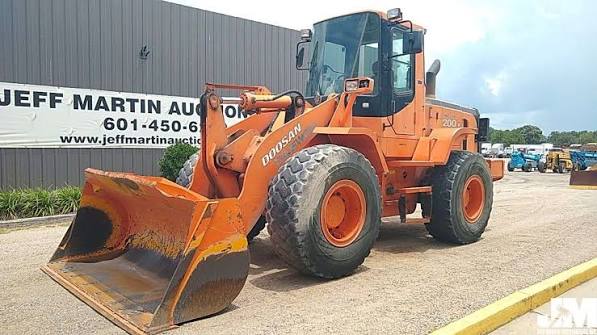

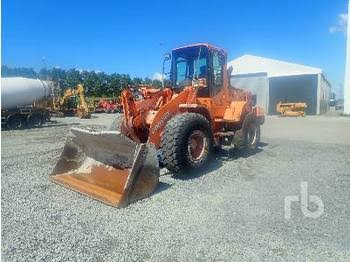

MEGA 200 V
- Operating Weight
- 24,692 lb
- Bucket Capacity - heaped
- 2.50 yd³
- Gross Power
- 143.0 hp
- Net Power
- 138.0 hp
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 24,692 lb |
|---|---|
| Fuel Capacity | 68.7 gal |
| Tire Size | 17.5-25 |
| Hydraulic System Fluid Capacity | 39.7 gal |
| Static Tipping Weight | 18,740 lb |
| Operating Voltage | 24 V |
| Turning Radius | 223 in |
| Engine Oil Fluid Capacity | 5.6 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 5.3 gal |
| Rear Axle/Diff Fluid Capacity | 5.3 gal |
| Cooling System Fluid Capacity | 8.2 gal |
| Transmission Fluid Capacity | 8.0 gal |
Engine
| Engine Model | DB58Ti |
|---|---|
| Displacement | 354 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 143.0 hp |
| Net Power | 138.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged after cooled |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 46.3 gal/min |
|---|---|
| Raise Time | 5.0 s |
| Lower Time | 3.3 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 2,845 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 115 in |
| Width Over Tires | 97 in |
| Reach at Max Lift and Dump | 39 in |
| Length with Bucket on Ground | 277 in |
| Hinge Pin - Max Height | 151 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 14.6 mph |
| Transmission Type | auto powershift countershaft |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.50 yd³ |
|---|---|
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 23,800 lb |
| Bucket Width | 101 in |
