Doosan
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
Doosan

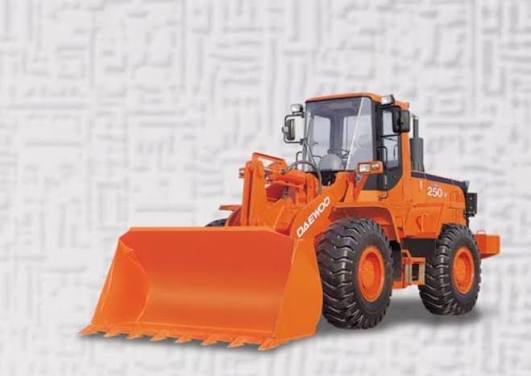

MEGA 250 V
- Operating Weight
- 30,864 lb
- Bucket Capacity - heaped
- 3.20 yd³
- Gross Power
- 163.0 hp
- Net Power
- 161.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 30,864 lb |
|---|---|
| Fuel Capacity | 71.4 gal |
| Tire Size | 20.5-25-16PR-L3 |
| Hydraulic System Fluid Capacity | 51.6 gal |
| Static Tipping Weight | 29,101 lb |
| Operating Voltage | 24 V |
| Turning Radius | 239 in |
| Engine Oil Fluid Capacity | 5.6 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 8.2 gal |
| Rear Axle/Diff Fluid Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 13.3 gal |
| Transmission Fluid Capacity | 7.2 gal |
Engine
| Engine Model | DB58TIS |
|---|---|
| Displacement | 353 in³ |
| Gross Power | 163.0 hp |
| Net Power | 161.0 hp |
| Aspiration | turbocharged air to air intercooled |
Hydraulic System
| Pump Flow Capacity | 66.1 gal/min |
|---|---|
| Raise Time | 5.3 s |
| Lower Time | 3.3 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 2,901 psi |
| Pump Type | tandem vane pumps |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 120 in |
| Width Over Tires | 102 in |
| Reach at Max Lift and Dump | 42 in |
| Length with Bucket on Ground | 296 in |
| Hinge Pin - Max Height | 154 in |
Transmission
| Max Speed - Forward | 23.0 mph |
|---|---|
| Max Speed - Reverse | 15.3 mph |
| Transmission Type | full power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 109 in |
| Breakout Force | 29,101 lb |
| Bucket Width | 108 in |
