Doosan

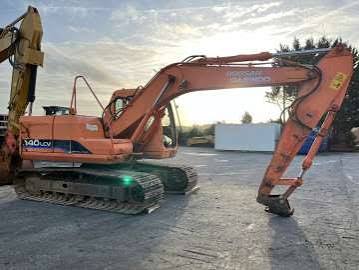

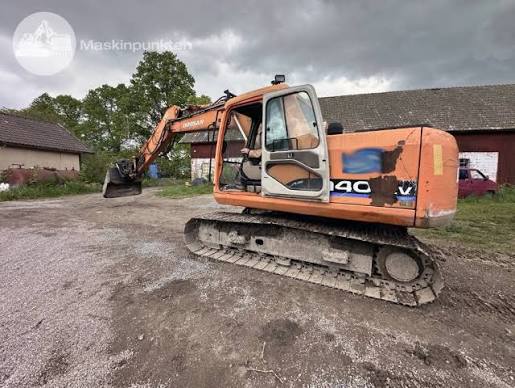

SOLAR 140LC-V
- Operating Weight
- 30,644 lb
- Max Digging Depth
- 185 in
- Max Digging Depth
- 222 in
- Net Power
- 95.0 hp
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 30,644 lb |
|---|---|
| Fuel Capacity | 60.8 gal |
| Hydraulic Pump Flow Capacity | 61.3 gal/min |
| Hydraulic System Fluid Capacity | 43.6 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 5.1 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.8 gal |
Engine
| Engine Model | DB58TIS |
|---|---|
| Displacement | 353 in³ |
| Power Measured @ | 1,850 rpm |
| Gross Power | 99.0 hp |
| Net Power | 95.0 hp |
| Aspiration | turbocharged air to water intercooled |
| Torque Measured @ | 1,850 rpm |
| Max Torque | 289 lb-ft |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 111 in |
| Length of Track on Ground | 110 in |
| Tail Swing Radius | 88 in |
| Width to Outside of Tracks | 103 in |
| Removal Counterweight Clearance | 37 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.1 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 185 in |
|---|---|
| Max Reach Along Ground | 270 in |
| Max Loading Height | 193 in |
| Max Vertical Wall Digging Depth | 145 in |
| Max Cutting Height | 291 in |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 222 in |
|---|---|
| Max Vertical Wall Digging Depth | 200 in |
| Max Cutting Height | 340 in |
| Max Loading Height | 245 in |
| Max Reach Along Ground | 320 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 243 in |
|---|---|
| Max Cutting Height | 353 in |
| Max Loading Height | 258 in |
| Max Vertical Wall Digging Depth | 223 in |
| Max Reach Along Ground | 340 in |
