Dressta

TD-14M

Crawler Dozer

Operating Weight
35,494 lb
Max Speed - Forward
6.8 mph
Gross Power
173.0 hp
Net Power
160.0 hp
All crawler dozers

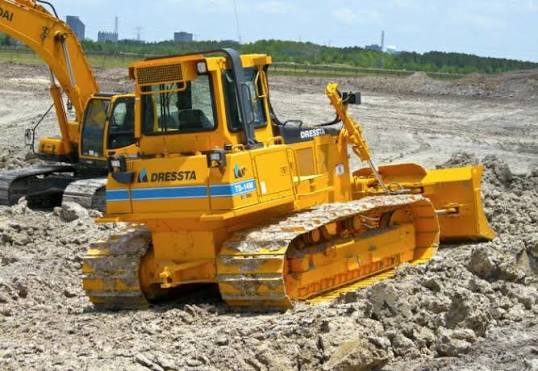

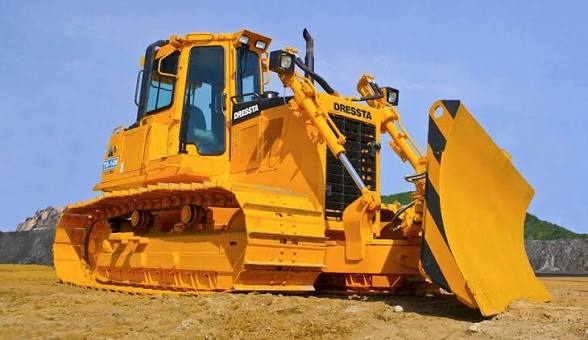

Dressta TD-14M Crawler Dozer
1 / 5
Image 1 of 5
Image: mascus.ie

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight35,494 lb
Fuel Capacity100.4 gal
Cooling System Fluid Capacity9.0 gal
Final Drives Fluid Capacity7.4 gal
Engine Oil Capacity4.9 gal
Hydraulic Fluid Capacity15.6 gal

Engine

Engine specifications
Engine ModelQSB6.7
Displacement408 in³
Power Measured @1,800 rpm
Gross Power173.0 hp
Net Power160.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,350 rpm
Max Torque659 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity30.2 gal/min
Relief Valve Pressure2,540 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab128 in
Length of Track on Ground103 in
Width Over Tracks97 in
Length w/ Blade210 in
Length w/o Blade144 in

Transmission

Transmission specifications
Max Speed - Forward6.8 mph
Max Speed - Reverse8.1 mph
Transmission TypePowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge74 in
Number of Track Rollers per Side2
Number of Shoes per Side40
Number of Carrier Rollers per Side7
Standard Shoe Size22 in
Ground Contact Area4,495 in³

Standard Blade

Standard Blade specifications
Width128 in
Height47 in
Capacity4.20 yd³
