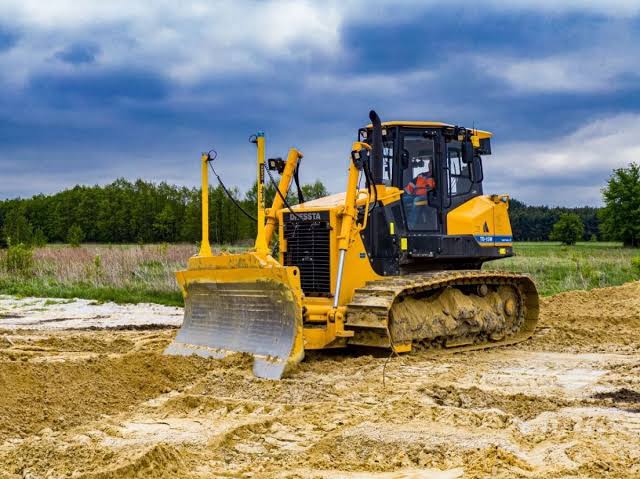

Dressta
TD-15M LGP
- Operating Weight
- 46,451 lb
- Max Speed - Forward
- 6.3 mph
- Gross Power
- 205.0 hp
- Net Power
- 190.0 hp
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 46,451 lb |
|---|---|
| Fuel Capacity | 102.5 gal |
| Cooling System Fluid Capacity | 13.2 gal |
| Final Drives Fluid Capacity | 10.6 gal |
| Engine Oil Capacity | 13.2 gal |
| Hydraulic Fluid Capacity | 16.0 gal |
| Operating Voltage | 12 V |
Engine
| Engine Model | QSC 8.3 |
|---|---|
| Displacement | 505 in³ |
| Gross Power | 205.0 hp |
| Net Power | 190.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and CAC |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 46.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,500 psi |
| Pump Type | Pump tandem gear driven from torque converter. |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 137 in |
| Width Over Tracks | 132 in |
| Length w/o Blade | 217 in |
Transmission
| Max Speed - Forward | 6.3 mph |
|---|---|
| Max Speed - Reverse | 7.4 mph |
| Transmission Type | Modular countershaft type powershift electro-hydraulic control. |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 43 |
| Standard Shoe Size | 37 in |
| Ground Contact Area | 9 in³ |
General Specifications
| Weight lbs (kg) | 46,451 (21,070) — Starting 2019 Model Year |
|---|---|
| Engine type | Cummins QSC 8.3 — Starting 2019 Model Year |
| Engine Power HP (KW) | 190 (141) — Starting 2019 Model Year |
Standard Blade
| Width | 152 in |
|---|---|
| Height | 43 in |
| Capacity | 4.70 yd³ |
