Dressta

TD-15M WT

Crawler Dozer

Operating Weight
45,779 lb
Max Speed - Forward
6.3 mph
Gross Power
205.0 hp
Net Power
190.0 hp
All crawler dozers

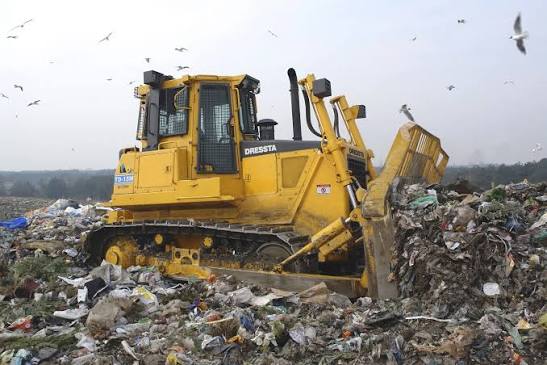

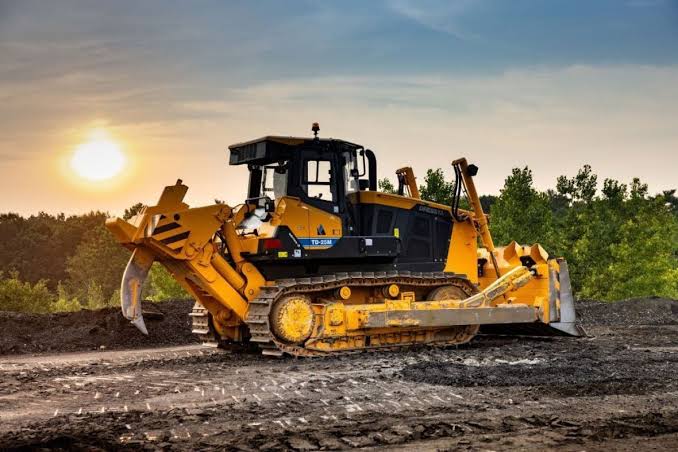

Dressta TD-15M WT Crawler Dozer
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,779 lb
Fuel Capacity102.5 gal
Cooling System Fluid Capacity13.2 gal
Final Drives Fluid Capacity10.6 gal
Engine Oil Capacity6.1 gal
Hydraulic Fluid Capacity16.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelQSC 8.3
Displacement505 in³
Gross Power205.0 hp
Net Power190.0 hp
Number of Cylinders6
AspirationTurbocharged and CAC
Torque Measured @1,500 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity46.0 gal/min
Relief Valve Pressure2,500 psi
Pump TypePump tandem gear driven from torque converter

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab137 in
Width Over Tracks115 in
Length w/o Blade223 in

Transmission

Transmission specifications
Max Speed - Forward6.3 mph
Max Speed - Reverse7.4 mph
Transmission TypeModular countershaft type power shift electro-hydraulic control.
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side8
Number of Shoes per Side43
Standard Shoe Size30 in
Ground Contact Area7 in³

Standard Blade

Standard Blade specifications
Width142 in
Height58 in
Capacity7.80 yd³
