Dynapac

CA1300D

Smooth Drum Roller

Operating Weight
11,700 lb
Max Speed
4.0 mph
Drum Width
54 in
Gross Power
75.0 hp
All smooth drum rollers

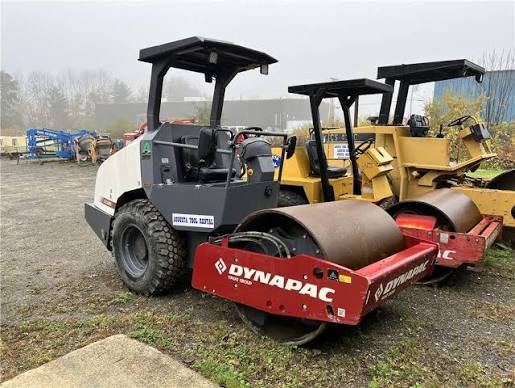

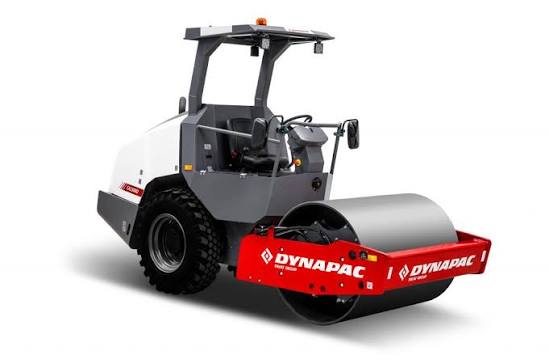

Dynapac CA1300D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: construction.altg.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,700 lb
Operating weight ROPS10,600 lb
Max Speed4.0 mph
Fuel Capacity31.0 gal
Tire Size125-20

Engine

Engine specifications
Engine ModelV 3307 CR-TE4
Power Measured @2,200 rpm
Gross Power75.0 hp
Engine MakeKubota
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase73 in
Overall Length156 in
Overall Width60 in
Height - Top of ROPS/FOPS101 in
Turning Radius - Inside96 in
Gradeability55.0 %
Height72 in
Turning Radius - Outside156 in
Curb clearance10 in

General Specifications

General Specifications specifications
Engine typeKubota V3307 CR-TE4 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)54 (137) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)96 (244) — Starting 2024 Model Year
WIDTH IN. (CM)59 (150) — Starting 2019 Model Year
FREQUENCY HZ2,100 vpm — Starting 2019 Model Year
FREQUENCY VPM (HZ)2,100 (35) — Starting 2024 Model Year

Drum

Drum specifications
Drum Width54 in
Drum Diameter39 in
Centrifugal Force - High20,000 lb
Drum thickness1 in
