Dynapac

CA1400D

Smooth Drum Roller

Operating Weight
15,900 lb
Max Speed
6.2 mph
Drum Width
66 in
Gross Power
75.0 hp
All smooth drum rollers

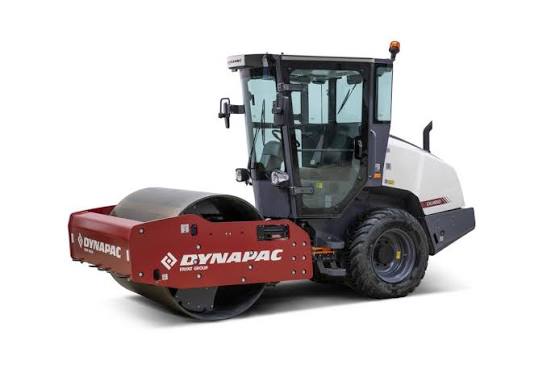

Dynapac CA1400D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mimico.co.nz

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,900 lb
Operating weight ROPS14,350 lb
Max Speed6.2 mph
Fuel Capacity31.0 gal
Tire Size400/60-22.5 flotation

Engine

Engine specifications
Engine ModelV 3307 CR-TE4
Power Measured @2,200 rpm
Gross Power75.0 hp
Engine MakeKubota
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase87 in
Overall Length15 in
Overall Width54 in
Height - Top of ROPS/FOPS107 in
Turning Radius - Inside114 in
Gradeability56.0 %
Turning Radius - Outside180 in
Curb clearance14 in
Overhang Rear5 in
Overhang Front5 in

General Specifications

General Specifications specifications
Engine typeKubota V3307 CR-TE4 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)66 (167) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)114 (289) — Starting 2019 Model Year
WIDTH IN. (CM)73 (185) — Starting 2019 Model Year
FREQUENCY HZ1,920 vpm — Starting 2019 Model Year
FREQUENCY VPM (HZ)1,920 (32) — Starting 2024 Model Year

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Centrifugal Force - High25,600 lb
Centrifugal Force - Low12,400 lb
Drum thickness1 in
