Dynapac

CA1500D

Smooth Drum Roller

Operating Weight
15,900 lb
Max Speed
7.5 mph
Drum Width
66 in
Gross Power
75.0 hp
All smooth drum rollers

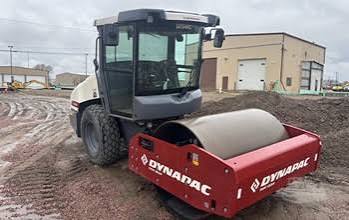

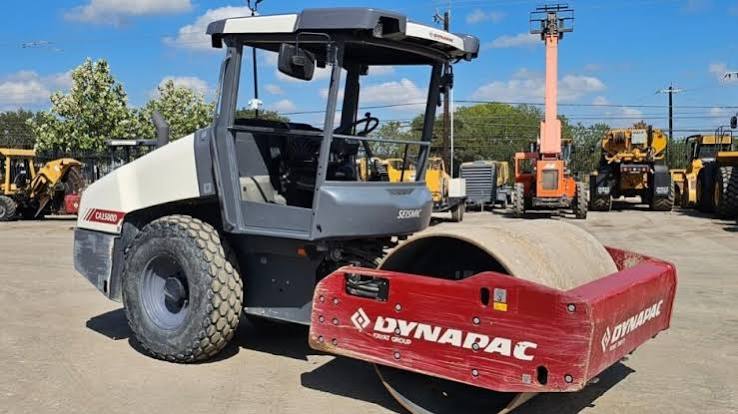

Dynapac CA1500D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: quotor.com.au

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,900 lb
Operating weight ROPS15,500 lb
Max Speed7.5 mph
Fuel Capacity50.0 gal
Tire Size14.9 x 24 TL

Engine

Engine specifications
Engine ModelTD3.6
Power Measured @2,200 rpm
Gross Power75.0 hp
Engine MakeDeutz
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase106 in
Overall Length17 in
Height - Top of ROPS/FOPS108 in
Turning Radius - Inside120 in
Gradeability55.0 %
Turning Radius - Outside192 in
Curb clearance14 in
Overhang Front5 in
Overhang Rear5 in

General Specifications

General Specifications specifications
Engine typeDeutz TD3.6 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)66 (167) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)109 (276) — Starting 2019 Model Year
WIDTH IN. (CM)73 (185) — Starting 2019 Model Year
FREQUENCY HZ1,920/2,160 vpm — Starting 2019 Model Year

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Centrifugal Force - High29,900 lb
Centrifugal Force - Low16,200 lb
Drum thickness1 in

Comparable machines

Other smooth drum rollers in a similar weight class.
