Dynapac

CA150D

Smooth Drum Roller

Operating Weight
20,283 lb
Max Speed
5.0 mph
Drum Width
66 in
Gross Power
80.5 hp
All smooth drum rollers

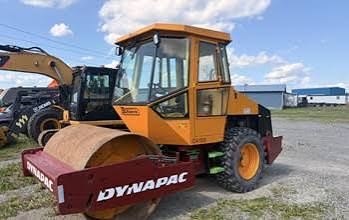

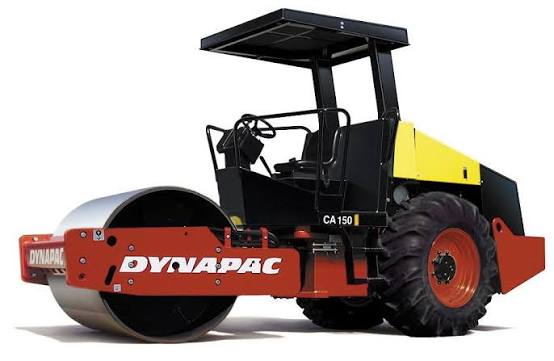

Dynapac CA150D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,283 lb
Operating weight ROPS15,873 lb
Max Speed5.0 mph
Fuel Capacity225.0 gal
Operating Width66 in
Tire Size420-70B24

Engine

Engine specifications
Engine ModelQSB3.3
Power Measured @2,200 rpm
Gross Power80.5 hp
Number of Cylinders4
Engine MakeCummins
Engine TypeWater cooled turbo diesel

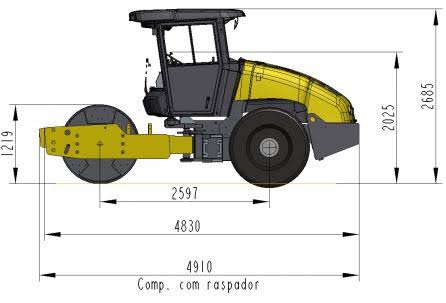

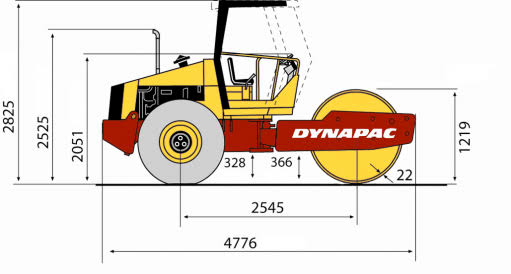

Dimensions

Dimensions specifications
Height - Top of Cab111 in
Overall Length188 in
Overall Width73 in
Height - Top of ROPS/FOPS111 in
Gradeability55.0 %
Height81 in

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 131 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High33,721 lb
Vibration Frequency 243 vpm
Static Linear Load32 lb-ft
Vibration Frequency31 – 43 vpm
Centrifugal Force - Low24,504 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
Frequency31 – 43 vpm

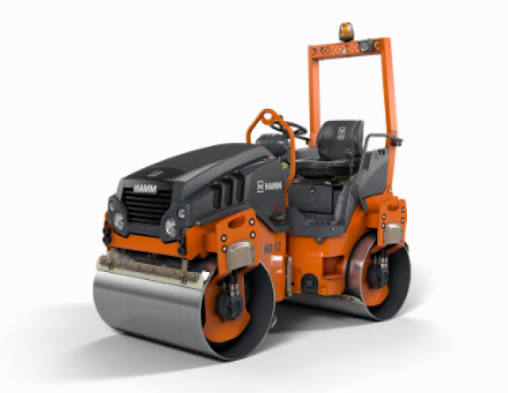

Comparable machines
