Dynapac

CA152

Smooth Drum Roller

Operating Weight
15,984 lb
Max Speed
11.9 mph
Drum Width
66 in
Gross Power
99.0 hp
All smooth drum rollers

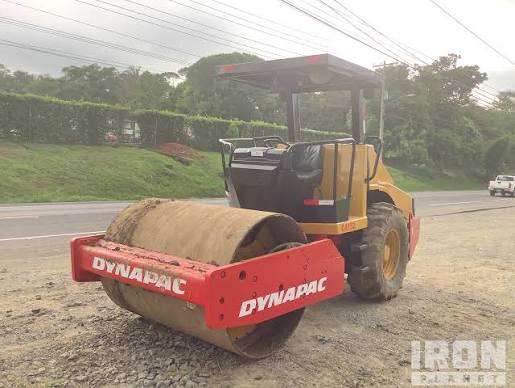

Dynapac CA152 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,984 lb
Max Speed11.9 mph
Fuel Capacity59.5 gal

Engine

Engine specifications
Engine ModelB4.5 T
Power Measured @2,200 rpm
Gross Power99.0 hp
Aspirationwater cooled turbo diesel

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab113 in
Wheelbase8 in
Overall Length16 in
Overall Width66 in

Tires & Wheels

Tires & Wheels specifications
Tires420-70 B24

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 131 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High25,628 lb
Vibration Frequency 243 vpm
Centrifugal Force - Low24,504 lb
Nominal Amplitude - Low0 in
