Dynapac

CA2500D (3.3)

Smooth Drum Roller

Operating Weight
22,928 lb
Max Speed
8.0 mph
Drum Width
84 in
Gross Power
110.0 hp
All smooth drum rollers

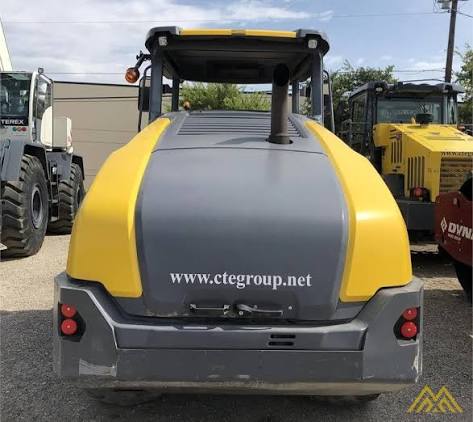

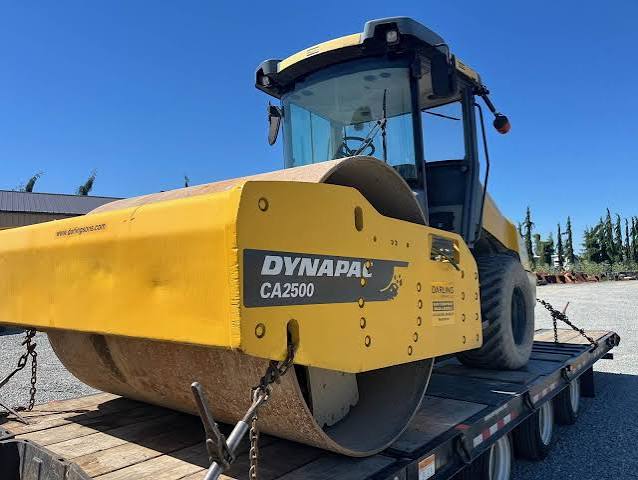

Dynapac CA2500D (3.3) Smooth Drum Roller
1 / 5
Image 1 of 5
Image: constructionequipmentguide.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,928 lb
Operating weight ROPS22,046 lb
Max Speed8.0 mph
Fuel Capacity190.0 gal
Tire Size550/60-22.5

Engine

Engine specifications
Engine ModelQSB3.3
Power Measured @2,200 rpm
Gross Power110.0 hp
Engine MakeCummins
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase112 in
Overall Length219 in
Height - Top of ROPS/FOPS111 in
Turning Radius - Inside122 in
Gradeability51.0 %
Turning Radius - Outside214 in
Curb clearance17 in
Overhang Rear5 in
Overhang Front5 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Nominal Amplitude - High0 in
Centrifugal Force - High46,086 lb
Static Linear Load12 lb-ft
Centrifugal Force - Low22,481 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
Pad Surface Area84 in³
