Dynapac
BOMAG
BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5

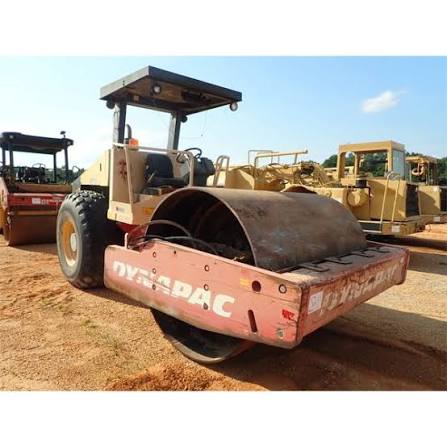

Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 26,676 lb |
|---|---|
| Max Speed | 6.3 mph |
| Fuel Capacity | 66.1 gal |
Engine
| Engine Model | 4BT 3.9-C |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 102.0 hp |
| Aspiration | water cooled turbo diesel with after cooler |
| Engine Make | Cummins |
| Make | John Deere |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 113 in |
| Overall Length | 219 in |
| Overall Width | 84 in |
| Height - Top of ROPS/FOPS | 117 in |
| Turning Radius - Inside | 122 in |
| Gradeability | 57.0 % |
| Height | 86 in |
| Turning Radius - Outside | 214 in |
| Curb clearance | 16 in |
| Overhang Rear | 5 in |
| Overhang Front | 5 in |
Tires & Wheels
| Tires | 231x26 |
|---|
Drum
| Drum Width | 84 in |
|---|---|
| Drum Diameter | 60 in |
| Vibration Frequency 1 | 33 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 55,753 lb |
| Static Linear Load | 14 lb-ft |
| Centrifugal Force - Low | 27,202 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |
| Frequency | 33 vpm |
