Dynapac

CA250D (BRAZIL)

Smooth Drum Roller

Operating Weight
26,015 lb
Max Speed
7.5 mph
Drum Width
84 in
Gross Power
110.0 hp
All smooth drum rollers

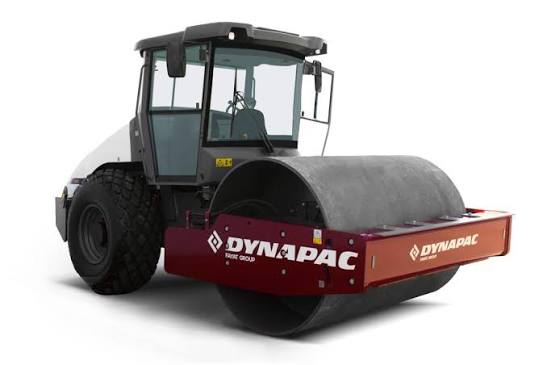

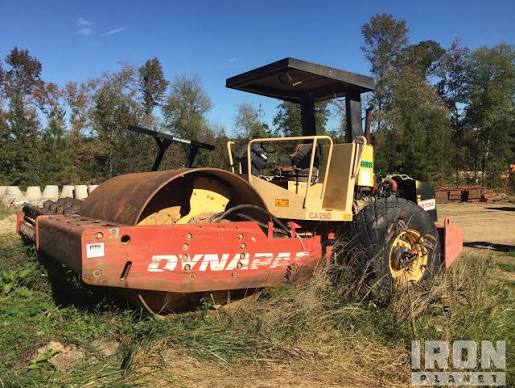

Dynapac CA250D (BRAZIL) Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,015 lb
Operating weight ROPS22,928 lb
Max Speed7.5 mph
Fuel Capacity250.0 gal
Tire Size231 x 26

Engine

Engine specifications
Engine ModelQSB 4.5 Tier 3
Power Measured @2,200 rpm
Gross Power110.0 hp
Engine MakeCummins
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase113 in
Overall Length219 in
Height - Top of ROPS/FOPS117 in
Turning Radius - Inside122 in
Gradeability65.0 %
Height86 in
Turning Radius - Outside214 in
Curb clearance16 in
Overhang Rear5 in
Overhang Front5 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter60 in
Nominal Amplitude - High0 in
Centrifugal Force - High55,078 lb
Static Linear Load14 lb-ft
Centrifugal Force - Low26,752 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
