Dynapac

CA250PD (BRAZIL)

Padfoot Compactor

Max Speed
4.4 mph
Drum Width
84 in
Gross Power
102.0 hp
All padfoot compactors

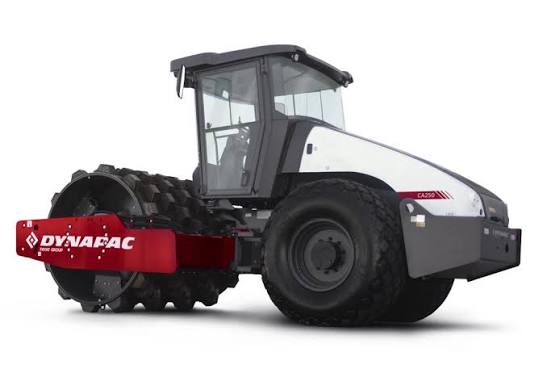

Dynapac CA250PD (BRAZIL) Padfoot Compactor
1 / 5
Image 1 of 5
Image: waterlooequipment.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Max Speed4.4 mph
Tire Size231x26

Engine

Engine specifications
Engine Model4BT 3.9-C
Power Measured @2,200 rpm
Gross Power102.0 hp
Engine MakeCummins
Engine TypeWater cooled turbo Diesel

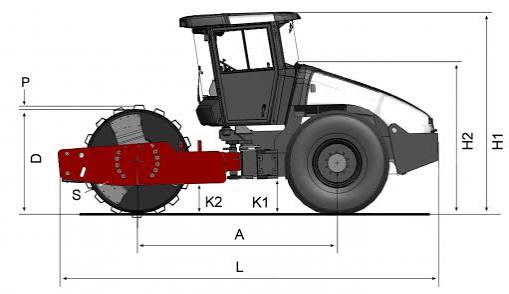

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase113 in
Overall Length219 in
Height - Top of ROPS/FOPS117 in
Turning Radius - Inside122 in
Gradeability38.0 %
Height86 in
Turning Radius - Outside214 in
Curb clearance16 in
Overhang Rear5 in
Overhang Front5 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter60 in
Drum thickness1 in
