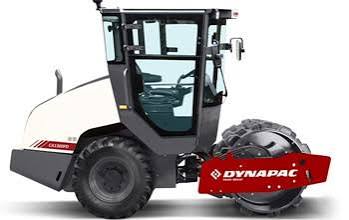

DynapacDynapac
CA610PD
Padfoot Compactor
29 specifications
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating weight Cabin | 59,415 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Operating Width | 95 in |
| Tire Size | 231x26 |
| Max Steering Angle | 38 ° |
Engine
| Power Measured @ | 2,200 rpm |
|---|---|
| Gross Power | 220.0 hp |
| Aspiration | water cooled turbo diesel with after cooler |
| Engine Make | Cummins |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 120 in |
| Overall Length | 257 in |
| Overall Width | 54 in |
| Width Over Tires | 90 in |
| Height - Top of ROPS/FOPS | 118 in |
| Gradeability | 45.0 % |
| Height | 88 in |
| Turning Radius - Outside | 236 in |
| Overall Length w/o Blade | 258 in |
| Curb clearance | 19 in |
| Overhang Front | 7 in |
| Overhang Rear | 6 in |
Tires & Wheels
| Tires | 23.1x26 |
|---|
Drum
| Vibration Frequency 1 | 28 vpm |
|---|---|
| Centrifugal Force - High | 74,187 lb |
| Drum Diameter | 66 in |
| Nominal Amplitude - High | 0 in |
| Pad Height | 4 in |
| Number of Pads | 140 |
| Centrifugal Force - Low | 57,102 lb |
| Nominal Amplitude - Low | 0 in |
| Vibratory Frequency 2 | 30 vpm |
| Pad Surface Area | 23 in³ |
| Vibration Frequency | 28 – 30 vpm |
| Frequency | 28 – 30 vpm |
| Vibration Frequency 2 | 30 vpm |

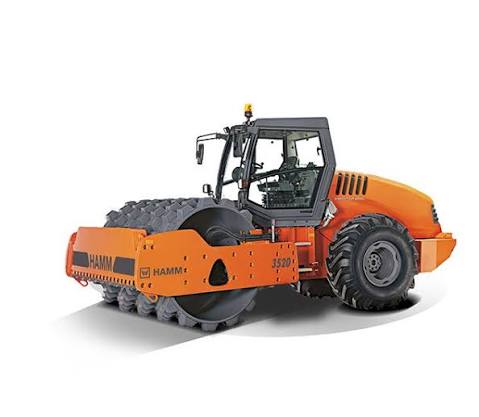

Comparable machines
